Details

---

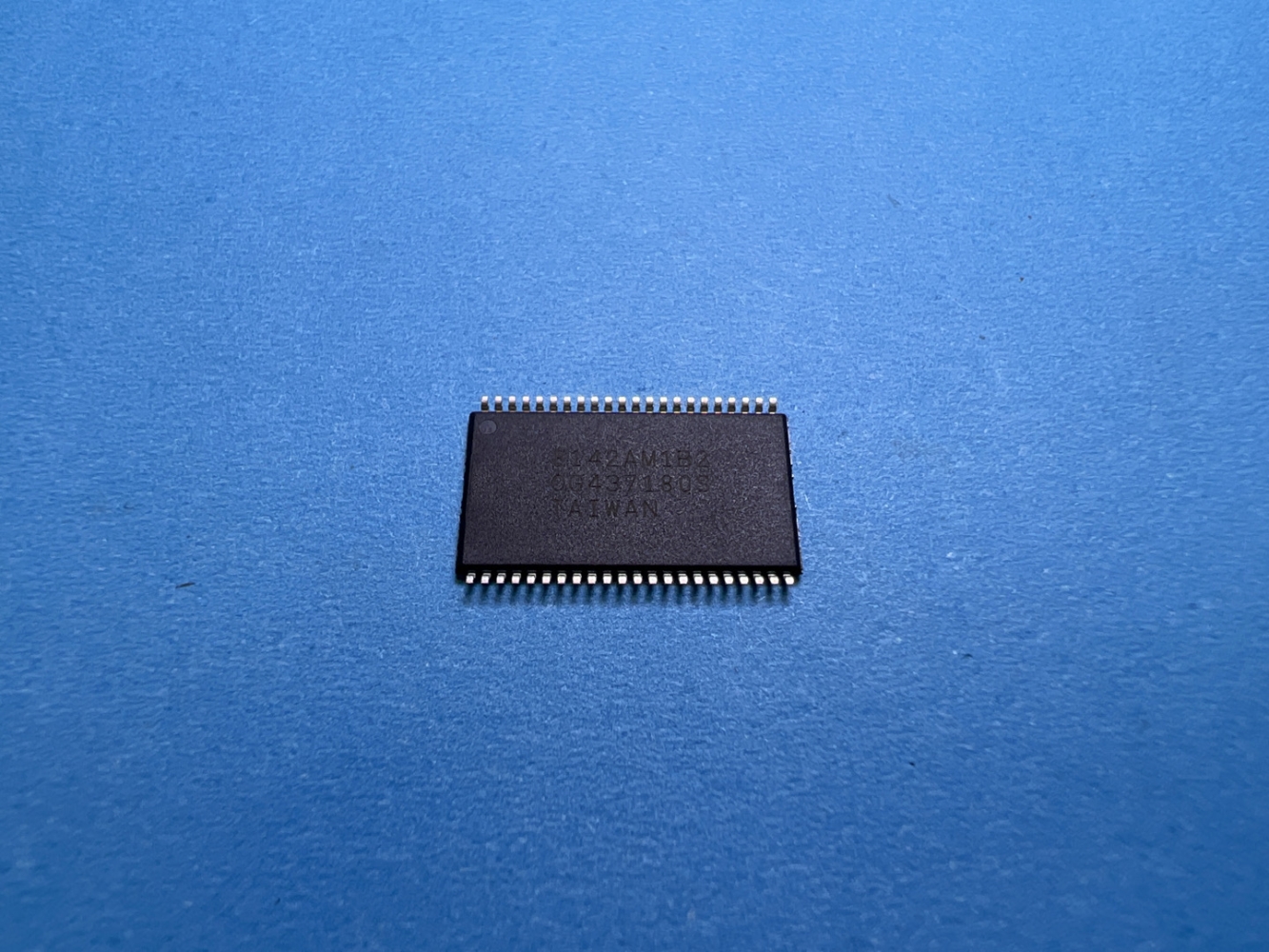

BUY IS61C6416AL-12TLI https://www.utsource.net/itm/p/12598403.html

Parameter	Description
Device Type	64K x 16 CMOS Low Power Static RAM
Package Type	TQFP (Thin Quad Flat Package)
Pin Count	48 Pins
Operating Voltage (VCC)	2.5V to 3.6V
Standby Current (ISB)	0.1 渭A at VCC = 3.0V, TA = 25掳C
Active Current (ICC)	12 mA at f = 10 MHz, VCC = 3.0V
Access Time (tAA)	12 ns typical
Data Retention (VCCOFF)	Data retained for 20 years at 85掳C
Temperature Range (TA)	-40掳C to +85掳C
Ordering Code	IS61C6416AL-12TLI

Instructions for Use:

1. Power Supply Connection: Ensure that the power supply voltage (VCC) is within the specified range of 2.5V to 3.6V. Connect VCC to the appropriate pin and GND to the ground pin.

2. Signal Integrity: For optimal performance, ensure all signal lines are properly terminated and routed to minimize noise and crosstalk.

3. Clock Frequency: The device supports a maximum clock frequency such that the access time (tAA) is 12 ns typical. Ensure your system clock settings do not exceed this limit.

4. Handling Precautions: This device is sensitive to electrostatic discharge (ESD). Handle with appropriate ESD protection measures.

5. Storage and Operation Temperature: Store and operate the device within the specified temperature range (-40掳C to +85掳C) to ensure reliable operation and data retention.

6. Programming Considerations: Follow standard programming practices for static RAM devices. Ensure proper write and read cycles to prevent data corruption.

7. Environmental Conditions: Protect from moisture and corrosive environments as these can affect the longevity and reliability of the component.

(For reference only)
