Details

---

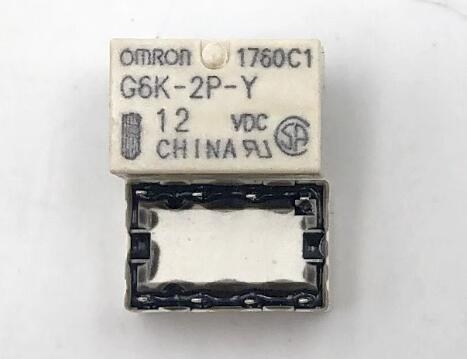

BUY G6K-2P-Y-12V G6K-2P-Y-12VDC G6K-2P-Y-DC12V 12V 1A 8PINS https://www.utsource.net/itm/p/12604914.html

Parameter	Value
Part Number	G6K-2P-Y-12V
Voltage	12V DC
Current Rating	1A
Pin Configuration	8 pins
Coil Type	Y
Series	G6K
Operating Type	SPDT (Single Pole Double Throw)
Mounting	Panel mount

Instructions:

1. Installation:

   • Ensure the relay is mounted securely in a location that allows for adequate ventilation and heat dissipation.
   • Use the provided mounting hardware or suitable alternatives to attach the relay to your panel.

2. Wiring:

   • Connect the coil terminals to the 12V DC power supply ensuring correct polarity.
   • Wire the common, normally open, and normally closed contacts according to your circuit requirements.

3. Testing:

   • Apply power to the coil and verify the switching operation of the contacts using a multimeter or appropriate testing device.
   • Ensure all connections are secure and functioning as expected before full implementation.

4. Maintenance:

   • Periodically inspect the relay for any signs of wear or damage.
   • Clean the relay contacts if necessary, using a soft, dry brush or compressed air.

5. Safety Precautions:

   • Always disconnect power before performing any maintenance or wiring changes.
   • Follow all local electrical codes and guidelines when installing and operating the relay.

(For reference only)
