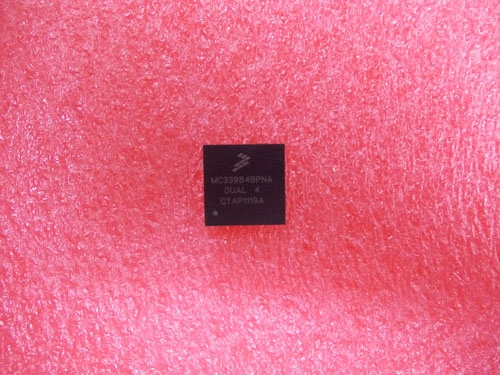

BUY MC33984BPNA https://www.utsource.net/itm/p/12606048.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	VCC	Operating	4.5		40	V
Output Current	IOUT	Continuous		1.5	2	A
Peak Output Current	IPEAK				3	A
Power Dissipation	PD	Junction Temp			600	mW
Operating Temperature	TOPR	Junction to Air	-40		125	掳C
Storage Temperature	TSTG		-65		150	掳C
Thermal Resistance	R胃JA	Junction to Air		60		掳C/W

Instructions for MC33984BPNA:

1. Supply Voltage Setup:

   • Ensure the supply voltage (VCC) is within the range of 4.5V to 40V for stable operation.

2. Output Current Handling:

   • The device can provide a continuous output current up to 2A with peak currents reaching up to 3A. Design your circuit to stay within these limits to avoid damage.

3. Power Dissipation Management:

   • Keep power dissipation below 600mW to prevent overheating. Use appropriate heat sinks if operating near maximum power conditions.

4. Temperature Considerations:

   • Operate the device within an ambient temperature range of -40掳C to 125掳C. For storage, ensure temperatures do not exceed -65掳C to 150掳C.

5. Thermal Monitoring:

   • Monitor thermal resistance to ensure it does not exceed 60掳C/W to maintain optimal performance and longevity.

6. Installation and Mounting:

   • Follow standard mounting procedures for surface mount devices. Ensure good thermal contact if using heatsinks or cooling solutions.

7. Electrical Protection:

   • Implement necessary protection circuits such as overcurrent and overvoltage protection to safeguard the MC33984BPNA from transient conditions.

8. Testing and Validation:

   • Before finalizing the design, thoroughly test the device under all expected operating conditions to ensure reliability and performance meet specifications.

(For reference only)
