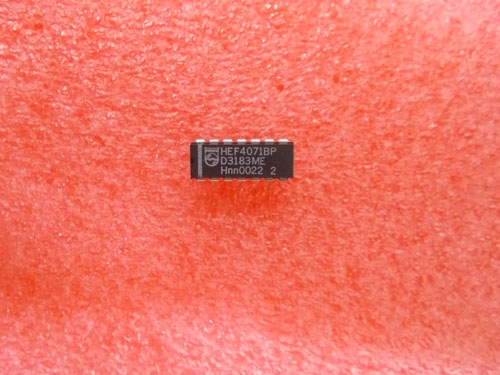

BUY HEF4071BP https://www.utsource.net/itm/p/12606408.html

Parameter	Symbol	Min	Typ	Max	Unit	Description
Supply Voltage	VDD	3	-	15	V	Operating supply voltage range
Input Voltage (High)	VIH	2	-	VDD	V	Minimum input voltage for logic high
Input Voltage (Low)	VIL	0	-	0.5 * VDD	V	Maximum input voltage for logic low
Output Voltage (High)	VOH	2.4	-	VDD - 0.1	V	Minimum output voltage for logic high
Output Voltage (Low)	VOL	0	-	0.01 * VDD	V	Maximum output voltage for logic low
Input Current (High)	IIH	-1	-	10	渭A	Input current at logic high
Input Current (Low)	IIL	-1	-	10	渭A	Input current at logic low
Output Current (High)	IOH	-	-	-1	mA	Maximum output current at logic high
Output Current (Low)	IOL	-	-	16	mA	Maximum output current at logic low
Propagation Delay Time	tpd	18	35	70	ns	Time delay from input to output
Power Dissipation	PD	-	-	100	mW	Maximum power dissipation per package
Operating Temperature	TA	-40	-	85	掳C	Ambient temperature range
Storage Temperature	TSTG	-65	-	150	掳C	Temperature range for storage

Instructions:

1. Supply Voltage (V_DD):

   • Ensure the supply voltage is within the specified range (3V to 15V).
   • Use a stable power source to avoid voltage fluctuations.

2. Input Voltages:

   • For a logic high input, the voltage should be at least 2V or up to the supply voltage.
   • For a logic low input, the voltage should be 0V or up to 0.5 times the supply voltage.

3. Output Voltages:

   • The output voltage for a logic high should be at least 2.4V or up to the supply voltage minus 0.1V.
   • The output voltage for a logic low should be 0V or up to 0.01 times the supply voltage.

4. Current Ratings:

   • Ensure that the input currents do not exceed 卤10渭A.
   • The output current for a logic high should not exceed -1mA.
   • The output current for a logic low should not exceed 16mA.

5. Propagation Delay:

   • The propagation delay time is the time it takes for the output to change state after the input changes. It ranges from 18ns to 70ns.

6. Power Dissipation:

   • Do not exceed the maximum power dissipation of 100mW to prevent overheating.

7. Temperature Ranges:

   • Operate the device within the ambient temperature range of -40掳C to 85掳C.
   • Store the device within the temperature range of -65掳C to 150掳C.

8. Handling:

   • Handle the device with care to avoid static damage.
   • Follow proper soldering techniques to ensure reliable connections.

(For reference only)
