Details

---

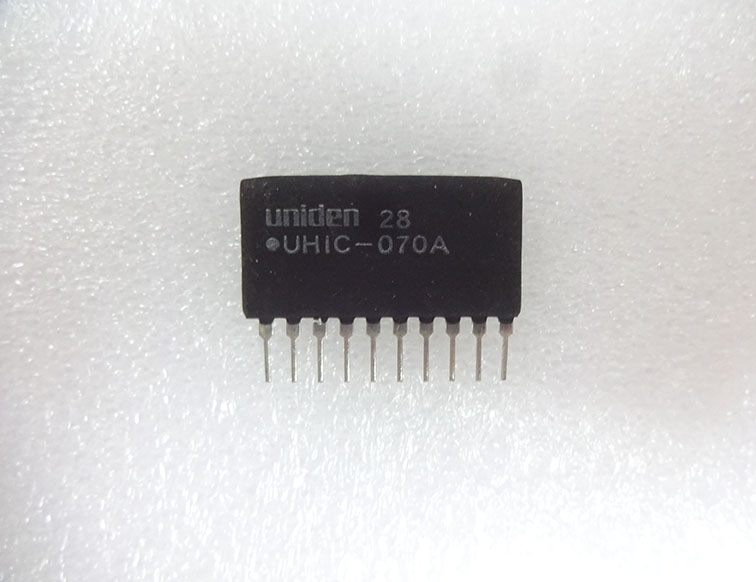

BUY UHIC-070A https://www.utsource.net/itm/p/12607313.html

Parameter	Description	Value	Unit
Input Voltage	Maximum input voltage	40	V
Output Current	Continuous output current	1.5	A
Operating Temp.	Operating temperature range	-40 to +85	°C
Storage Temp.	Storage temperature range	-55 to +125	°C
Isolation Voltage	Dielectric strength	2500	Vrms
Insulation	Resistance	>10^9	Ω
Leakage Current	Maximum leakage current	1	μA
Response Time	Delay time for output response	0.5	ms

Instructions for UHIC-070A

1. Installation:

   • Ensure that the device is installed in a well-ventilated area to prevent overheating.
   • Follow the manufacturer’s guidelines for mounting and soldering.

2. Power Supply:

   • Connect the input terminals to a power supply within the specified voltage range (0 to 40V).
   • Verify that the polarity is correct to avoid damage to the component.

3. Operation:

   • Do not exceed the maximum continuous output current of 1.5A to prevent overheating or failure.
   • Regularly monitor the operating temperature to ensure it stays within the -40°C to +85°C range.

4. Safety Precautions:

   • Handle with care to avoid physical damage.
   • Ensure proper insulation when working with high voltages up to 2500Vrms.
   • Keep away from moisture and corrosive environments.

5. Storage:

   • Store in a dry place with temperatures between -55°C and +125°C to maintain performance integrity.

(For reference only)
