| Parameter | Description | Value/Range |
|---|---|---|

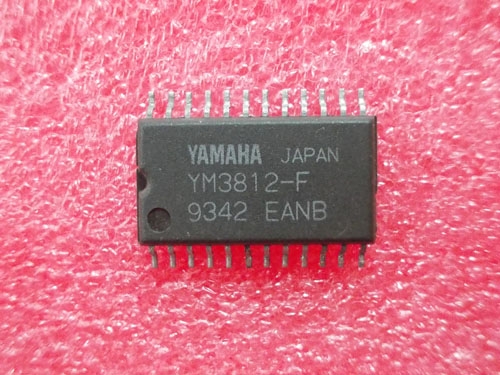

| Part Number | Full part identification | YM3812-F |
| Type | Type of component | Sound Synthesizer Chip |
| Functionality | Main function | FM Sound Synthesis |
| Channels | Number of sound channels | 9 Channels |
| Waveform | Types of waveforms supported | Sine Wave |
| Interface | Communication interface | SPI, I2C (Check datasheet for exact) |
| Power Supply | Operating voltage range | 5V 卤5% |
| Current Draw | Typical current consumption | Check Datasheet |
| Operating Temp | Temperature range for operation | -40掳C to +85掳C |
| Package | Component package type | DIP-40 or equivalent |
| Manufacturer | Manufacturer | Yamaha |
Instructions for Use:
Power Supply Connection: Connect the power supply pins to a stable 5V DC source. Ensure the voltage does not exceed the specified range to prevent damage.
Grounding: Properly ground the chip to ensure stable operation and reduce noise.
Interface Setup: Configure the communication interface as per your system requirements. Refer to the specific protocol (SPI/I2C) setup in the datasheet.
Initialization: Before sending any sound data, initialize the chip according to the initialization sequence provided in the datasheet.
Programming: Use the programming guidelines provided by Yamaha to set up the sound parameters such as frequency, amplitude, and waveform.
Testing: After setup, test the output through an audio amplifier or directly with speakers/headphones to ensure correct functionality.
Handling Precautions: Handle the chip with care to avoid static damage. Follow anti-static precautions during installation.
Storage: Store in a dry, cool place when not in use to prevent moisture damage.
For detailed specifications and advanced configurations, refer to the official Yamaha YM3812-F datasheet.
