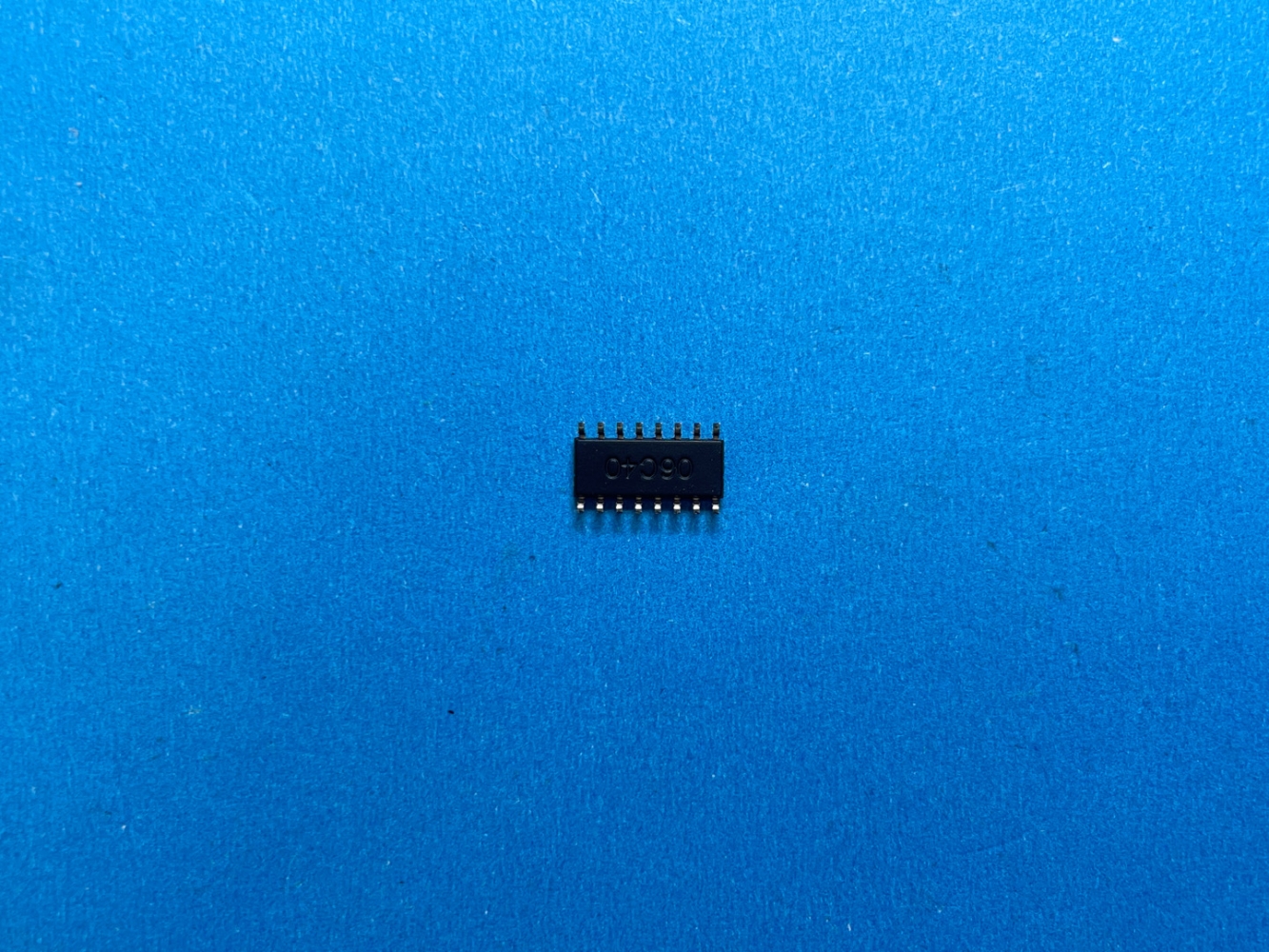

BUY AM26C32C https://www.utsource.net/itm/p/12608226.html

Parameter	Symbol	Min	Typ	Max	Unit
Supply Voltage	VCC	4.5	5.0	5.5	V
Operating Temperature	TOP	-40		85	掳C
Storage Temperature	TSTG	-65		150	掳C
Input Voltage (High)	VIH	2.0	3.5	5.5	V
Input Voltage (Low)	VIL	0	1.5	3.0	V
Output Voltage (High)	VOH	2.4	3.5	5.0	V
Output Voltage (Low)	VOL	0	0.4	0.7	V
Propagation Delay Time	tpd		12	20	ns
Skew	tskew		2	5	ns
Power Dissipation	PD			100	mW
Input Capacitance	CIN		10		pF
Output Capacitance	COUT		10		pF

Instructions for Use:

1. Supply Voltage:

   • Ensure the supply voltage is within the range of 4.5V to 5.5V to avoid damage to the device.

2. Operating Temperature:

   • The device operates reliably between -40掳C and 85掳C. Avoid exposing the device to temperatures outside this range during operation.

3. Storage Temperature:

   • Store the device in an environment with temperatures ranging from -65掳C to 150掳C to prevent degradation.

4. Input Voltages:

   • For a valid high input, the voltage should be between 2.0V and 5.5V.
   • For a valid low input, the voltage should be between 0V and 3.0V.

5. Output Voltages:

   • The output high voltage should be between 2.4V and 5.0V.
   • The output low voltage should be between 0V and 0.7V.

6. Propagation Delay Time:

   • The typical propagation delay time is 12ns, with a maximum of 20ns. This is crucial for timing considerations in your circuit design.

7. Skew:

   • The skew, or the difference in propagation delay between different channels, is typically 2ns with a maximum of 5ns. This ensures consistent performance across multiple channels.

8. Power Dissipation:

   • The maximum power dissipation is 100mW. Ensure adequate heat dissipation if operating near this limit to prevent overheating.

9. Capacitance:

   • The input and output capacitance are both typically 10pF. Consider these values when designing your PCB layout to minimize signal degradation.

Additional Notes:

• Always refer to the datasheet for the most accurate and detailed information.
• Proper decoupling capacitors should be used near the power pins to ensure stable operation.
• Ensure all connections are secure and free from shorts or open circuits.

(For reference only)
