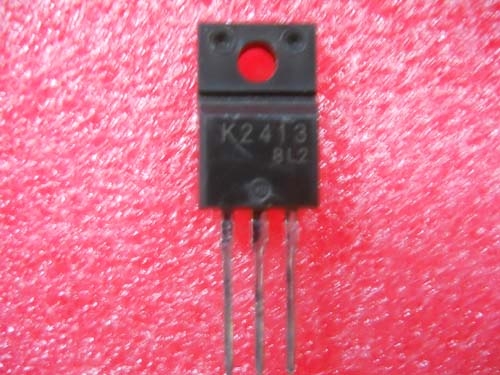

BUY 2SK2413 https://www.utsource.net/itm/p/12609493.html

Parameter	Symbol	Value	Unit
Drain-Source Voltage	VDS	卤600	V
Gate-Source Voltage	VGS	卤20	V
Continuous Drain Current	ID	8	A
Pulsed Drain Current	IDpeak	16	A
Power Dissipation	PTOT	100	W
Junction Temperature	TJ	-55 to +175	掳C
Storage Temperature	TSTG	-55 to +150	掳C

Instructions for Use:

1. Mounting and Handling:

   • Ensure that the device is handled with care to avoid mechanical stress.
   • Use appropriate heat sinks to manage the power dissipation, especially under high current conditions.

2. Electrical Connections:

   • Connect the drain (D), source (S), and gate (G) terminals correctly.
   • Ensure that the gate-source voltage (V_GS) does not exceed 卤20V to prevent damage to the gate oxide.

3. Operating Conditions:

   • Operate the device within the specified temperature range (-55掳C to +175掳C) to ensure reliable performance.
   • Keep the junction temperature below +175掳C to avoid thermal runaway.

4. Storage:

   • Store the device in a dry, cool place within the storage temperature range (-55掳C to +150掳C).

5. Testing:

   • Use appropriate test equipment and procedures to avoid exceeding the maximum ratings.
   • Perform initial testing at low power levels to verify correct operation before moving to higher power applications.

6. Safety:

   • Always use proper safety equipment and follow electrical safety guidelines when handling high-voltage and high-current circuits.
   • Ensure that the device is properly insulated and grounded to prevent electrical shock.

7. Environmental Considerations:

   • Dispose of the device according to local environmental regulations.
   • Avoid exposing the device to corrosive environments or excessive humidity.

(For reference only)
