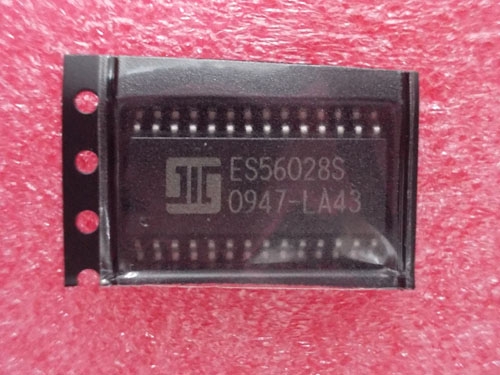

Details

---

BUY ES56028S https://www.utsource.net/itm/p/12609606.html

Parameter	Description	Value	Unit
Operating Voltage	Supply voltage range	1.6 to 5.5	V
Operating Current	Quiescent current	0.2	渭A
Output Type	Open-drain output	-	-
Maximum Load	Maximum load current	100	mA
Response Time	Typical response time	1	ms
Operating Temperature	Range of temperature for operation	-40 to 85	掳C
Storage Temperature	Range of temperature for storage	-55 to 125	掳C
Package Type	Encapsulation type	SOT-23	-

Instructions for ES56028S

1. Power Supply: Ensure the supply voltage is within the specified range of 1.6V to 5.5V.
2. Connection: Connect the component according to the pin configuration diagram provided in the datasheet. The open-drain output requires an external pull-up resistor.
3. Load Management: Do not exceed the maximum load current of 100mA to avoid damaging the device.
4. Temperature Considerations: Operate and store the device within the specified temperature ranges to ensure reliable performance and longevity.
5. Response Handling: Account for a typical response time of 1ms when integrating this component into your circuit design.
6. Environmental Conditions: Protect from moisture and handle with care to prevent electrostatic discharge (ESD) damage.

(For reference only)
