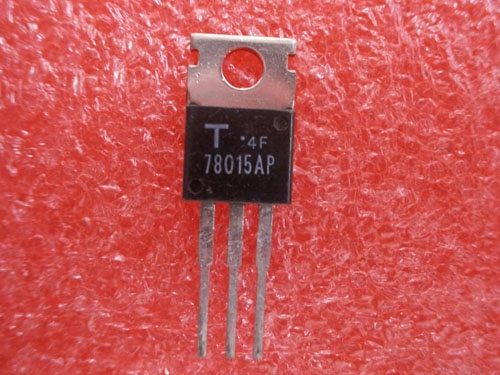

BUY TA78015AP https://www.utsource.net/itm/p/12611013.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	Vcc	-	4.5	5.0	5.5	V
Output Current	Iout	Continuous	-	1.5	2.0	A
Peak Output Current	Ipeak	Short duration	-	3.0	-	A
Thermal Shutdown	Tsd	-	140	-	-	掳C
Operating Temperature	Topr	-	-40	-	85	掳C
Storage Temperature	Tstg	-	-65	-	150	掳C
Power Dissipation	Pd	Ta = 25掳C	-	1.25	-	W

Instructions for Use:

1. Supply Voltage (Vcc):

   • Ensure the supply voltage is within the range of 4.5V to 5.5V. Operating outside this range can damage the device.

2. Output Current (Iout):

   • The continuous output current should not exceed 2.0A. For reliable operation, it is recommended to stay below 1.5A.

3. Peak Output Current (Ipeak):

   • The device can handle peak currents up to 3.0A for short durations. Avoid prolonged exposure to peak currents to prevent overheating.

4. Thermal Shutdown (Tsd):

   • The device will automatically shut down if the internal temperature exceeds 140掳C. This is a safety feature to prevent damage from overheating.

5. Operating Temperature (Topr):

   • The operating temperature range is from -40掳C to 85掳C. Ensure the device is used within this range to maintain performance and reliability.

6. Storage Temperature (Tstg):

   • The device can be stored in temperatures ranging from -65掳C to 150掳C. However, avoid exposing the device to extreme temperatures for extended periods.

7. Power Dissipation (Pd):

   • At an ambient temperature of 25掳C, the maximum power dissipation is 1.25W. Ensure adequate heat sinking or cooling if higher power dissipation is expected.

8. Mounting and Handling:

   • Handle the device with care to avoid mechanical stress. Use appropriate mounting techniques to ensure good thermal contact with the heatsink or PCB.

9. Electrostatic Discharge (ESD) Protection:

   • The device is sensitive to ESD. Use proper ESD protection measures during handling and installation.

10. Testing and Troubleshooting:

    • Before connecting the device to the circuit, verify all connections and supply voltages. If the device fails to operate correctly, check for proper power supply, correct wiring, and any potential short circuits.

(For reference only)
