Details

---

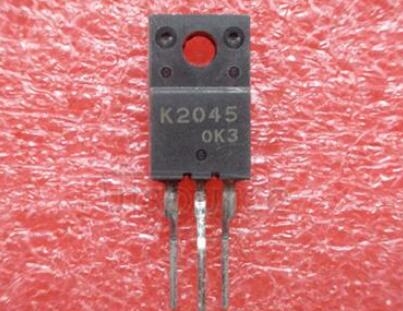

BUY 2SK2045 https://www.utsource.net/itm/p/12611823.html

Parameter	Symbol	Value	Unit
Drain-to-Source Voltage	V(DS)	500	V
Gate-to-Source Voltage	V(GS)	卤20	V
Drain Current (Continuous)	I(D)	10	A
Pulse Drain Current	I(DM)	20	A
Power Dissipation	P(TOT)	130	W
Junction Temperature	T(J)	-55 to +175	掳C
Storage Temperature	T(STG)	-55 to +150	掳C
Thermal Resistance	R(胃JC)	1.2	掳C/W

Instructions for Use:

1. Mounting:

   • Ensure proper heat sinking to maintain junction temperature within specified limits.
   • Use recommended mounting torque for screws to avoid damage.

2. Biasing:

   • Apply gate voltage within the specified range to avoid gate oxide breakdown.
   • Use a series resistor between the gate and the driving circuit to limit inrush current.

3. Operation:

   • Do not exceed the maximum drain current or power dissipation ratings.
   • Ensure that the drain-to-source voltage is within the rated limit to prevent avalanche breakdown.

4. Storage:

   • Store the device in a dry, cool place away from direct sunlight and corrosive environments.
   • Handle with care to avoid mechanical stress on the leads and body.

5. Testing:

   • Use appropriate test equipment and methods to avoid overstressing the device during testing.
   • Follow safety guidelines to prevent electrical shock and damage to the device.

6. Soldering:

   • Preheat the device to reduce thermal shock.
   • Use a soldering iron with a controlled temperature and apply solder quickly to minimize exposure time.

7. Handling:

   • Use static-protective packaging and handling practices to prevent damage from electrostatic discharge (ESD).

8. Circuit Design:

   • Incorporate adequate protection circuits such as clamping diodes and snubber networks to protect against transient voltages and currents.

By following these guidelines, you can ensure reliable operation and longevity of the 2SK2045 transistor.

(For reference only)
