Details

---

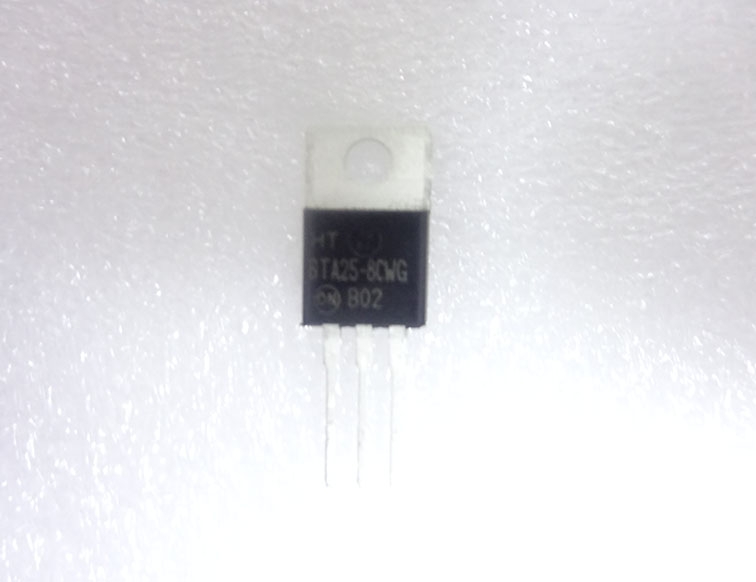

BUY BTA25-800CW3G https://www.utsource.net/itm/p/12611832.html

Parameter	Symbol	Value	Unit
Maximum RMS On-State Current	IT(RMS)	25	A
Maximum Peak On-State Current	ITSM	150	A
Maximum Off-State Voltage	VDRM	800	V
Maximum Repetitive Peak Off-State Voltage	VRRM	800	V
Gate Trigger Current (Min)	IGT	16	mA
Holding Current (Max)	IH	10	mA
Power Dissipation	PD	200	W
Operating Temperature Range	Tj	-40 to +125	掳C
Storage Temperature Range	Tstg	-40 to +125	掳C

Instructions for BTA25-800CW3G

1. Mounting and Handling:

   • Ensure that the device is mounted on a heatsink if operating near its maximum power dissipation.
   • Handle the device with care to avoid mechanical stress and damage to the leads.

2. Electrical Connections:

   • Connect the anode (A), cathode (K), and gate (G) terminals correctly.
   • Use appropriate wire gauges to handle the current levels specified.

3. Triggering:

   • Apply a gate trigger current (IGT) of at least 16 mA to turn on the device.
   • Ensure the gate trigger pulse width is sufficient to fully turn on the device.

4. Holding Current:

   • Maintain a minimum holding current (IH) of 10 mA to keep the device in the on state.

5. Overcurrent Protection:

   • Implement overcurrent protection to prevent damage from excessive currents exceeding the maximum peak on-state current (ITSM).

6. Thermal Management:

   • Monitor the junction temperature (Tj) to ensure it stays within the operating range of -40掳C to +125掳C.
   • Use thermal paste between the device and heatsink for better heat transfer.

7. Storage:

   • Store the device in a dry, cool place within the storage temperature range of -40掳C to +125掳C.

8. Safety Precautions:

   • Follow all relevant safety guidelines when handling high-voltage and high-current circuits.
   • Use appropriate personal protective equipment (PPE) when necessary.

(For reference only)
