Details

---

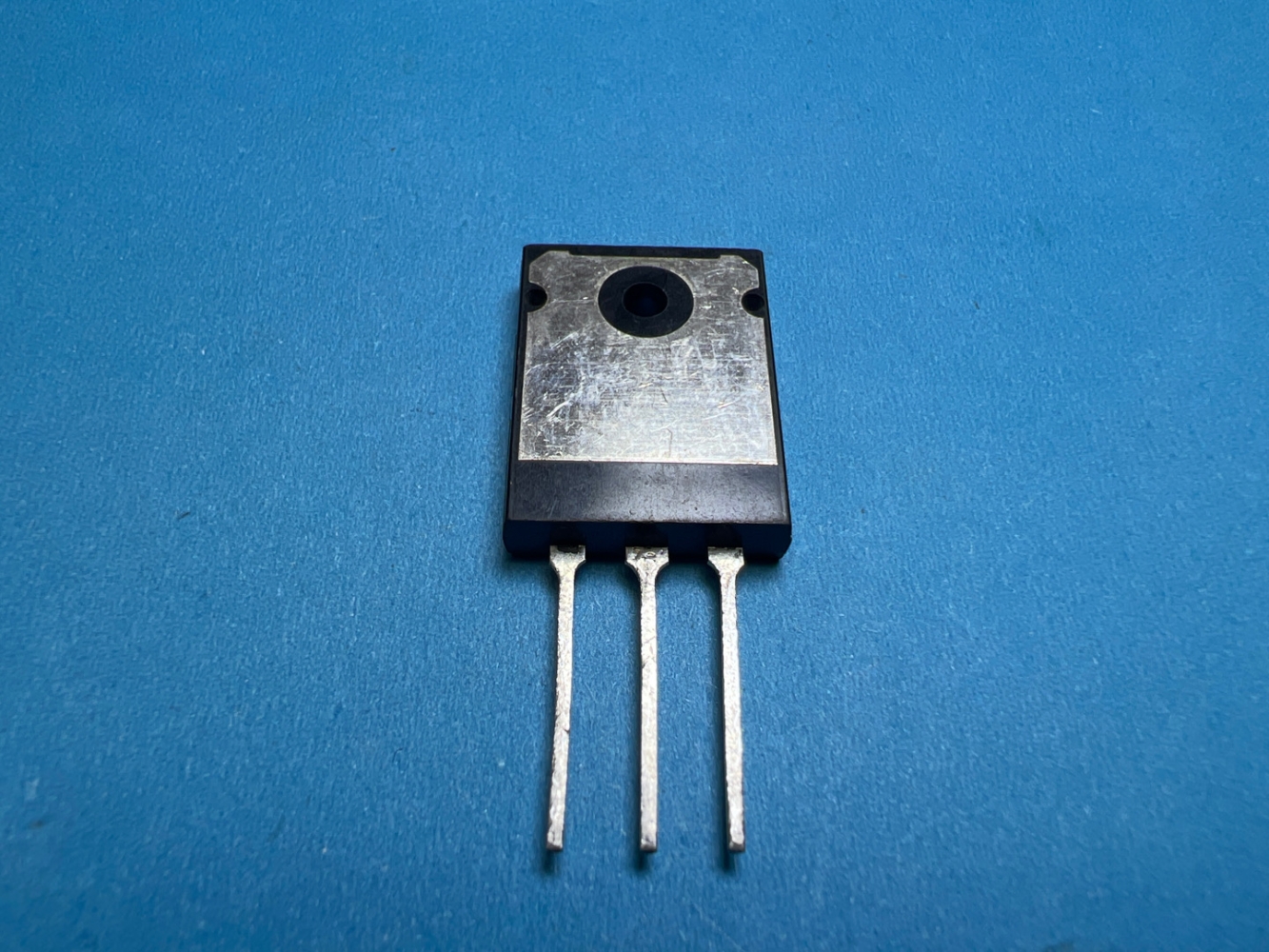

BUY 2SC3280 https://www.utsource.net/itm/p/12611845.html

Parameter	Symbol	Min	Typical	Max	Unit
Collector-Emitter Voltage	VCE	-	-	80	V
Base-Emitter Voltage	VBE	-	1.8	2.5	V
Collector Current	IC	-	-	15	A
Base Current	IB	-	-	3	A
Power Dissipation	PT	-	-	120	W
Storage Temperature Range	TSTG	-55	-	150	掳C
Operating Junction Temperature	TJ	-55	-	150	掳C
Transition Frequency	fT	-	100	-	MHz
Current Gain (DC)	hFE	20	100	300	-

Instructions for Use:

1. Handling:

   • Handle the 2SC3280 with care to avoid mechanical damage.
   • Use appropriate ESD (Electrostatic Discharge) precautions to prevent damage from static electricity.

2. Mounting:

   • Ensure proper heat sinking to manage the power dissipation and maintain the operating junction temperature within the specified range.
   • Use thermal paste or thermal grease between the transistor and the heat sink for better thermal conductivity.

3. Biasing:

   • Ensure that the base-emitter voltage (V_BE) is within the specified range to avoid damage.
   • The collector current (I_C) should not exceed the maximum rating to prevent overheating and potential failure.

4. Operating Conditions:

   • Operate the transistor within the specified temperature range to ensure reliable performance.
   • Do not exceed the maximum collector-emitter voltage (V_CE) to prevent breakdown.

5. Testing:

   • Use a suitable multimeter or transistor tester to verify the parameters before installation.
   • Test the transistor under controlled conditions to ensure it meets the required specifications.

6. Storage:

   • Store the 2SC3280 in a dry, cool place away from direct sunlight and extreme temperatures.
   • Keep the components in their original packaging until ready for use to protect against moisture and static damage.

7. Soldering:

   • Use a low-temperature soldering iron to avoid damaging the transistor during soldering.
   • Follow standard soldering practices to ensure a secure and reliable connection.

(For reference only)
