Details

---

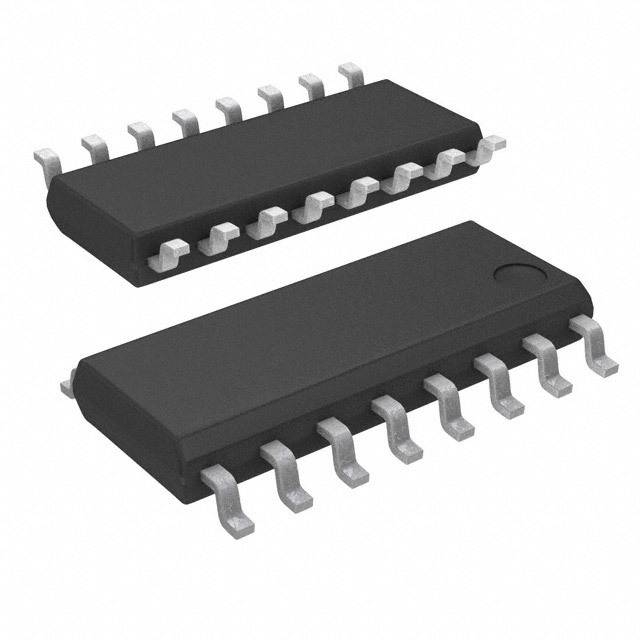

BUY AM26LS33ACD https://www.utsource.net/itm/p/12611849.html

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Supply Voltage	Vcc	4.75	5.0	5.25	V
Output High Level	VOH	2.4	3.5	5.0	V	@ IOH = -0.4mA, Vcc = 5V
Output Low Level	VOL	0	0.4	0.5	V	@ IOL = 16mA, Vcc = 5V
Input High Level	VIH	2.0		5.0	V
Input Low Level	VIL	0		0.8	V
Propagation Delay Time	tpd		10	15	ns	@ Vcc = 5V, TA = 25掳C
Power Dissipation	PD		100		mW	@ f = 10MHz, Vcc = 5V
Operating Temperature	TA	-40		85	掳C
Storage Temperature	Tstg	-65		150	掳C

Instructions for Use:

1. Power Supply:

   • Ensure the supply voltage (Vcc) is within the specified range of 4.75V to 5.25V.
   • Use appropriate decoupling capacitors (e.g., 0.1渭F ceramic capacitors) placed close to the power pins to minimize noise and stabilize the power supply.

2. Input Signals:

   • Input signals should be within the valid input levels (VIL and VIH).
   • Avoid applying voltages outside the supply range to prevent damage to the device.

3. Output Loading:

   • Ensure that the output current does not exceed the maximum ratings (IOH and IOL).
   • Use pull-up or pull-down resistors if necessary to ensure proper logic levels.

4. Propagation Delay:

   • The propagation delay time (tpd) is critical for timing considerations in digital circuits. Ensure that your design accounts for the maximum delay of 15ns at 5V and 25掳C.

5. Temperature Considerations:

   • Operate the device within the specified temperature range (-40掳C to 85掳C) for reliable performance.
   • Store the device in a controlled environment within the storage temperature range (-65掳C to 150掳C).

6. Handling:

   • Handle the device with care to avoid static discharge, which can damage sensitive components.
   • Use proper ESD protection equipment when handling the device.

7. Mounting:

   • Follow recommended soldering profiles and thermal guidelines to ensure proper mounting and reliability.
   • Ensure good thermal management to prevent overheating, especially in high-frequency applications.

By adhering to these parameters and instructions, you can ensure optimal performance and reliability of the AM26LS33ACD in your application.

(For reference only)
