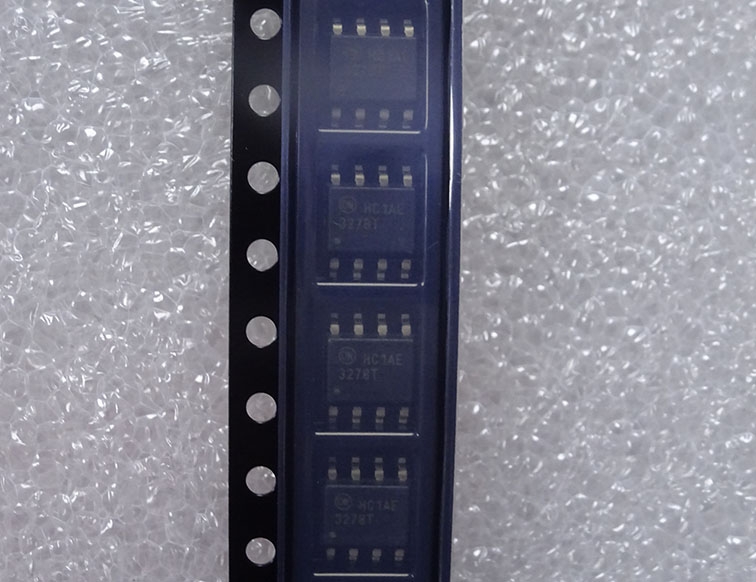

BUY FAN3278TMX https://www.utsource.net/itm/p/12611852.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	Vcc	-	4.5	5.0	5.5	V
Operating Temperature	Topr	-	-40	-	85	掳C
Storage Temperature	Tstg	-	-65	-	150	掳C
Input High Level Voltage	VIH	Iin = -0.1mA	2.0	-	Vcc	V
Input Low Level Voltage	VIL	Iin = 0.1mA	-	-	0.8	V
Output High Level Voltage	VOH	IO = -1mA, Vcc = 5V	4.0	-	Vcc	V
Output Low Level Voltage	VOL	IO = 16mA, Vcc = 5V	0	-	0.4	V
Propagation Delay Time	tpd	Vcc = 5V, RL = 150惟	-	13	-	ns
Power Dissipation	PD	TA = 25掳C	-	-	700	mW

Instructions for FAN3278TMX

1. Power Supply:

   • Ensure the supply voltage (Vcc) is within the specified range of 4.5V to 5.5V.

2. Temperature Considerations:

   • Operate the device within the operating temperature range (-40掳C to 85掳C).
   • Store the device within the storage temperature range (-65掳C to 150掳C).

3. Input Levels:

   • Set input high level voltage (VIH) above 2.0V and ensure it does not exceed Vcc.
   • Set input low level voltage (VIL) below 0.8V.

4. Output Levels:

   • Verify output high level voltage (VOH) is at least 4.0V when sourcing up to -1mA.
   • Ensure output low level voltage (VOL) is no more than 0.4V when sinking up to 16mA.

5. Timing:

   • Account for a propagation delay time (tpd) of approximately 13ns under typical conditions.

6. Power Management:

   • Keep power dissipation (PD) below 700mW to avoid overheating, especially at ambient temperatures of 25掳C.

7. Handling Precautions:

   • Handle with care to prevent damage from electrostatic discharge (ESD). Use appropriate ESD protection measures during handling and installation.

(For reference only)
