Details

---

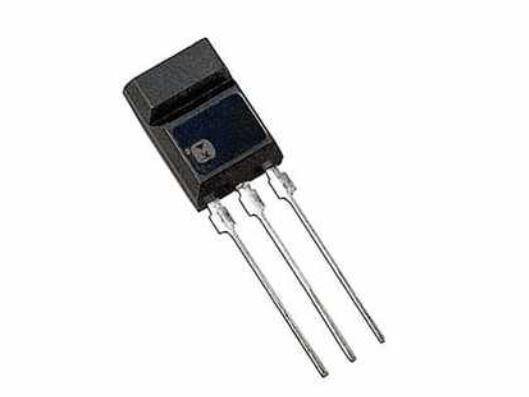

BUY 2SB1141S https://www.utsource.net/itm/p/12611916.html

Parameter	Symbol	Min	Typ	Max	Unit	Conditions
Collector-Emitter Voltage	VCEO	-	-	300	V	IC = 0, TA = 25掳C
Emitter-Collector Voltage	VECC	-	-	300	V	IE = 0, TA = 25掳C
Base-Emitter Voltage	VBE	-	-	7	V	IC = 150 mA, TA = 25掳C
Collector Current	IC	-	-	150	mA	VCE = 30 V, TA = 25掳C
Base Current	IB	-	-	15	mA	VCE = 30 V, TA = 25掳C
Power Dissipation	PT	-	-	625	mW	TA = 25掳C
Operating Temperature	TOP	-25	-	150	掳C	-
Storage Temperature	TSTG	-55	-	150	掳C	-
Transition Frequency	fT	-	200	-	MHz	IC = 10 mA, VCE = 10 V, TA = 25掳C
DC Current Gain	hFE	100	300	600	-	IC = 10 mA, VCE = 10 V, TA = 25掳C

Instructions for Use:

1. Mounting:

   • Ensure the transistor is mounted on a suitable heatsink if operating at high power levels to maintain the junction temperature within safe limits.
   • Use appropriate mounting hardware to secure the transistor without excessive mechanical stress.

2. Biasing:

   • Ensure the base-emitter voltage (V_BE) is within the specified range to avoid damage.
   • The collector current (I_C) should not exceed the maximum rating to prevent overheating and potential failure.

3. Operating Conditions:

   • Operate the transistor within the specified temperature range (T_OP) to ensure reliable performance.
   • Store the transistor in a dry environment within the storage temperature range (T_STG).

4. Handling:

   • Handle the transistor with care to avoid static discharge which can damage the device.
   • Use proper anti-static precautions when handling and soldering the transistor.

5. Testing:

   • Test the transistor using a multimeter or a dedicated transistor tester to verify its functionality before integrating it into a circuit.
   • Ensure all connections are secure and free from shorts or open circuits.

6. Circuit Design:

   • Design the circuit to provide adequate cooling if the transistor will be dissipating significant power.
   • Use bypass capacitors to stabilize the power supply and reduce noise.

By following these guidelines, you can ensure optimal performance and longevity of the 2SB1141S transistor.

(For reference only)
