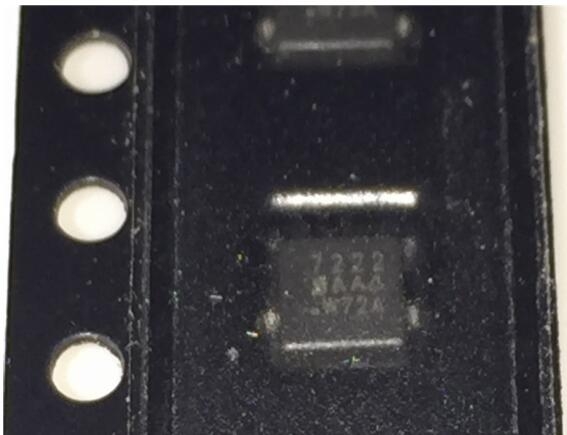

BUY SI7222DN https://www.utsource.net/itm/p/12611942.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	VDD	Operating Range	1.6	-	5.5	V
Output Current	IOUT	Continuous Operation	-	200	-	mA
On-State Resistance	RDS(on)	VGS = 4.5V, ID = 200mA	-	70	-	m惟
Gate Threshold Voltage	VGS(th)	ID = 1mA	0.8	-	2.0	V
Leakage Current	IS	VGS = 0V, VDS = VDD	-	1	-	渭A
Power Dissipation	PD	TA = 25掳C	-	-	400	mW

Instructions for SI7222DN:

1. Power Supply:

   • Ensure the supply voltage (VDD) is within the operating range of 1.6V to 5.5V.

2. Current Handling:

   • The device can handle a continuous output current of up to 200mA. Ensure that the load does not exceed this limit to avoid damage.

3. On-State Operation:

   • For optimal performance, operate with a gate-source voltage (VGS) of at least 4.5V to achieve the typical on-state resistance (RDS(on)) of 70m惟.

4. Gate Control:

   • Apply a gate threshold voltage (VGS(th)) between 0.8V and 2.0V to turn the device on. Ensure that the gate voltage is sufficient to fully enhance the channel.

5. Leakage Considerations:

   • At zero gate-source voltage (VGS = 0V), the leakage current (IS) should be less than or equal to 1渭A. This ensures minimal power loss when the device is off.

6. Thermal Management:

   • Keep the power dissipation below 400mW at an ambient temperature (TA) of 25掳C to ensure reliable operation and prevent overheating.

7. Installation and Handling:

   • Handle with care to avoid electrostatic discharge (ESD). Follow proper ESD precautions during installation.
   • Ensure correct orientation during soldering to avoid damage to the device.

8. Testing:

   • After installation, verify the functionality by checking the supply voltage, output current, and gate voltage levels according to the specifications provided.

(For reference only)
