Details

---

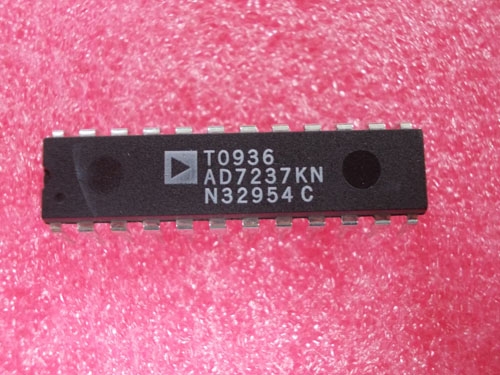

BUY AD7237KN https://www.utsource.net/itm/p/12611947.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	VDD	Operating	4.5		5.5	V
Analog Input Voltage	VIN	Relative to GND	0		VDD	V
Output Current	IOUT	Short-circuit current		10		mA
Power Dissipation	PD			250		mW
Temperature Range	Toper	Operating	-40		85	掳C
Quiescent Current	IQ	VDD = 5V		3		mA

Instructions for AD7237KN

1. Power Supply Connection:

   • Connect the power supply voltage (VDD) between 4.5V and 5.5V to the VDD pin.
   • Ensure a stable power supply to avoid fluctuations that can affect performance.

2. Analog Input Handling:

   • The analog input voltage (VIN) should be within the range of 0V to VDD relative to ground.
   • Avoid exceeding these limits to prevent damage to the device.

3. Output Usage:

   • The device can provide up to 10mA of output current in short-circuit conditions.
   • Be cautious not to exceed this limit to protect the internal circuitry.

4. Thermal Management:

   • The device is designed to operate within a temperature range of -40掳C to 85掳C.
   • For applications outside this range, additional thermal management measures may be required.

5. Quiescent Current:

   • At a supply voltage of 5V, the typical quiescent current is 3mA.
   • This value helps in power budget calculations for battery-operated devices.

6. Installation and Handling:

   • Handle the device with care to avoid static damage.
   • Follow standard PCB layout practices to ensure optimal performance.

Note: Always refer to the latest datasheet from the manufacturer for detailed specifications and application notes.

(For reference only)
