Details

---

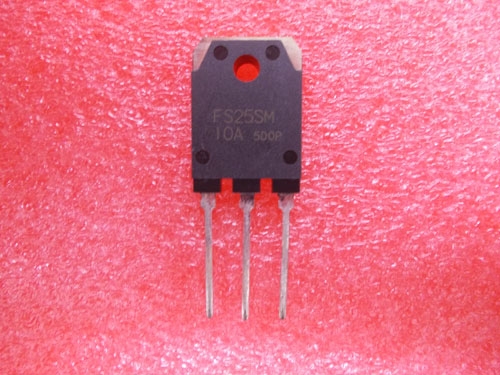

BUY FS25SM-10A https://www.utsource.net/itm/p/12611976.html

Parameter	Description	Value	Unit
Part Number	Full part number	FS25SM-10A	-
Type	Device type	Schottky Diode	-
Maximum Reverse Voltage	Maximum voltage that can be applied in reverse direction	10	V
Forward Voltage	Voltage drop across the diode when conducting	0.35	V
Continuous Forward Current	Maximum current that can flow through the diode continuously	25	A
Peak Pulse Current	Maximum pulse current	150	A
Junction Operating Temperature	Range of operating temperatures for the junction	-55 to 175	掳C
Storage Temperature	Temperature range for storage	-65 to 150	掳C
Package	Type of packaging	TO-252	-

Instructions:

1. Handling: Handle with care to avoid physical damage. Use appropriate ESD (Electrostatic Discharge) protection measures.
2. Mounting: Ensure proper mounting orientation and secure connections. Follow manufacturer guidelines for soldering temperature and time.
3. Operating Conditions: Do not exceed the maximum ratings specified in the table. Ensure adequate heat dissipation if operating near maximum current or temperature limits.
4. Storage: Store in a dry, cool place within the specified storage temperature range.
5. Testing: Before installation, test the device using appropriate methods to ensure it meets specifications.

(For reference only)
