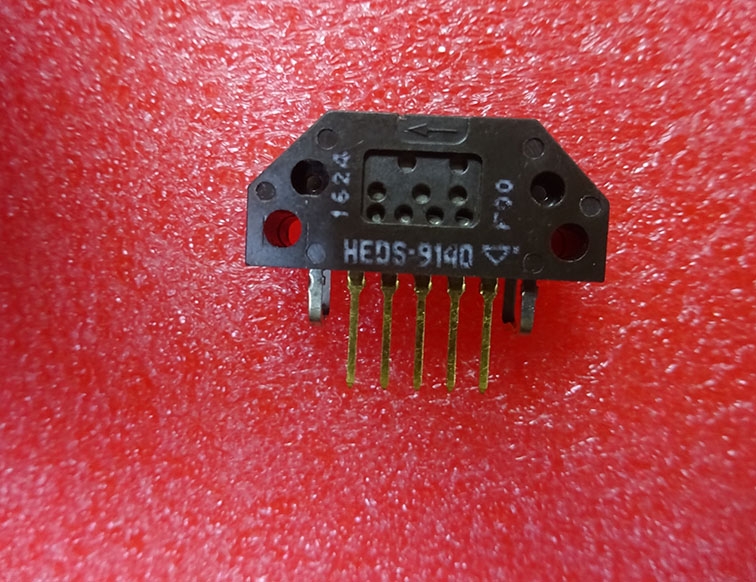

BUY HEDS9140#F00 https://www.utsource.net/itm/p/12612001.html

Parameter	Symbol	Min	Typ	Max	Unit	Notes
Supply Voltage	VCC	4.75	5	5.25	V
Operating Temperature	Toper	-40		85	掳C
Storage Temperature	Tstg	-55		125	掳C
Output Type			Open Collector
Output Current	IOL		16		mA
Maximum Power Dissipation	PD		150		mW
Response Time (Typical)	tR		30		渭s
Duty Cycle			50%
Resolution			100		CPR	Cycles per Revolution
Electrical Life			100		M	Million Operations

Instructions:

1. Power Supply:

   • Ensure the supply voltage is within the range of 4.75V to 5.25V.
   • Use a stable power source to avoid voltage fluctuations.

2. Temperature Considerations:

   • The device operates optimally between -40掳C and 85掳C.
   • Store the device in temperatures ranging from -55掳C to 125掳C.

3. Output Configuration:

   • The output is an open collector type, requiring an external pull-up resistor.
   • The typical output current should not exceed 16mA.

4. Power Dissipation:

   • Do not exceed the maximum power dissipation of 150mW to prevent overheating.

5. Response Time:

   • The typical response time is 30渭s, which is suitable for most applications.

6. Duty Cycle:

   • The device is designed to operate with a duty cycle of 50%.

7. Resolution:

   • The encoder provides 100 cycles per revolution (CPR).

8. Electrical Life:

   • The device is rated for up to 100 million operations.

9. Installation:

   • Ensure proper mechanical alignment and secure mounting to maintain accuracy.
   • Avoid excessive mechanical stress on the shaft or housing.

10. Handling:

    • Handle the device with care to avoid damage to the sensitive components.
    • Follow standard ESD (Electrostatic Discharge) precautions during handling and installation.

(For reference only)
