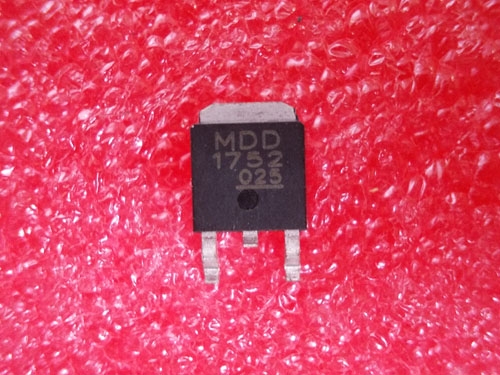

BUY MDD1752RH https://www.utsource.net/itm/p/12612017.html

Parameter	Symbol	Min	Typical	Max	Unit
Supply Voltage	VCC	4.5	-	5.5	V
Output Current (Per Channel)	IO	-	300	500	mA
Maximum Power Dissipation	PD	-	-	1000	mW
Operating Temperature	TOP	-40	-	85	掳C
Storage Temperature	TSTG	-55	-	150	掳C
Input Capacitance	CIN	-	10	-	pF
Output Capacitance	COUT	-	5	-	pF
Propagation Delay Time	tpd	-	15	-	ns
High-Level Input Voltage	VIH	3.5	-	5.5	V
Low-Level Input Voltage	VIL	0	-	1.5	V
High-Level Output Voltage	VOH	4.5	-	5.5	V
Low-Level Output Voltage	VOL	0	-	0.5	V

Instructions for Use:

1. Power Supply:

   • Ensure the supply voltage (V_CC) is within the range of 4.5V to 5.5V.
   • Use a stable power source to avoid voltage fluctuations.

2. Output Current:

   • The device can provide up to 500mA per channel, with a typical current of 300mA.
   • Do not exceed the maximum output current to prevent damage.

3. Power Dissipation:

   • The maximum power dissipation is 1000mW. Ensure proper heat sinking if operating near this limit.

4. Temperature Range:

   • The operating temperature range is from -40掳C to 85掳C.
   • The storage temperature range is from -55掳C to 150掳C.

5. Input and Output Capacitance:

   • The input capacitance is typically 10pF.
   • The output capacitance is typically 5pF.

6. Propagation Delay:

   • The propagation delay time is typically 15ns.

7. Input Voltage Levels:

   • High-level input voltage (V_IH) should be between 3.5V and 5.5V.
   • Low-level input voltage (V_IL) should be between 0V and 1.5V.

8. Output Voltage Levels:

   • High-level output voltage (V_OH) should be between 4.5V and 5.5V.
   • Low-level output voltage (V_OL) should be between 0V and 0.5V.

9. Handling and Storage:

   • Handle the device with care to avoid static discharge.
   • Store in a dry place within the specified storage temperature range.

10. Mounting:

    • Ensure proper mounting on a PCB with adequate clearance and soldering.
    • Follow recommended PCB layout guidelines for optimal performance.

(For reference only)
