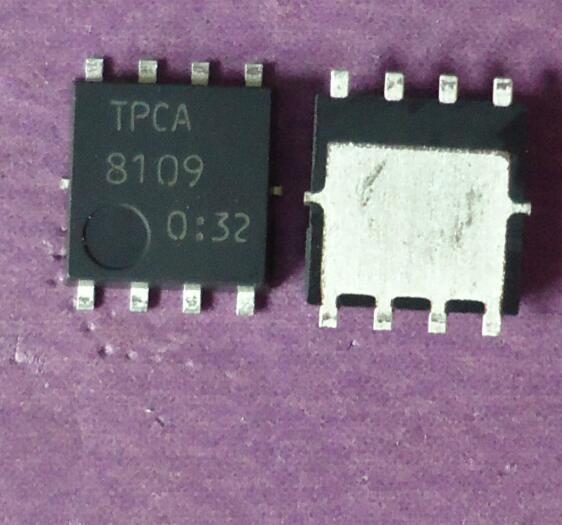

BUY TPCA8109 https://www.utsource.net/itm/p/12612030.html

Parameter	Description	Min	Typ	Max	Unit
VCC	Supply Voltage	4.5	-	5.5	V
ICC	Supply Current	-	20	-	mA
VIN	Input Voltage Range	0	-	5.5	V
VOUT	Output Voltage Range	0	-	5.5	V
IOUT	Output Current	-	100	-	mA
RON	On-State Resistance	-	0.05	-	惟
VTH	Threshold Voltage	1.2	-	1.4	V
tpd	Propagation Delay Time	-	10	-	ns
tr	Rise Time	-	5	-	ns
tf	Fall Time	-	5	-	ns
TOP	Operating Temperature	-40	-	85	掳C
Tj	Junction Temperature	-40	-	125	掳C

Instructions for Using TPCA8109

1. Supply Voltage (V_CC):

   • Ensure the supply voltage is within the range of 4.5V to 5.5V.
   • Use a stable power source to avoid fluctuations that could affect performance.

2. Input Voltage (V_IN):

   • The input voltage should be within the range of 0V to 5.5V.
   • Avoid exceeding the maximum input voltage to prevent damage to the device.

3. Output Voltage (V_OUT):

   • The output voltage can range from 0V to 5.5V.
   • Ensure the load connected to the output does not exceed the maximum current rating.

4. Output Current (I_OUT):

   • The maximum continuous output current is 100mA.
   • Exceeding this limit can cause overheating and potential damage.

5. On-State Resistance (R_ON):

   • The typical on-state resistance is 0.05惟.
   • This low resistance ensures minimal power loss during operation.

6. Threshold Voltage (V_TH):

   • The threshold voltage is between 1.2V and 1.4V.
   • This value determines the point at which the device switches from off to on.

7. Propagation Delay Time (t_pd):

   • The typical propagation delay time is 10ns.
   • This is the time it takes for the output to respond to a change in input.

8. Rise Time (t_r) and Fall Time (t_f):

   • Both rise time and fall time are typically 5ns.
   • These parameters are important for high-speed applications.

9. Operating Temperature (T_OP):

   • The operating temperature range is from -40掳C to 85掳C.
   • Ensure the device is used within this range to maintain reliable operation.

10. Junction Temperature (T_j):

    • The junction temperature should not exceed 125掳C.
    • Proper heat dissipation measures should be implemented if operating in high-temperature environments.

Additional Notes:

• Always refer to the datasheet for detailed specifications and application notes.
• Ensure proper PCB layout and grounding to minimize noise and interference.
• Use appropriate decoupling capacitors near the power pins to stabilize the supply voltage.
