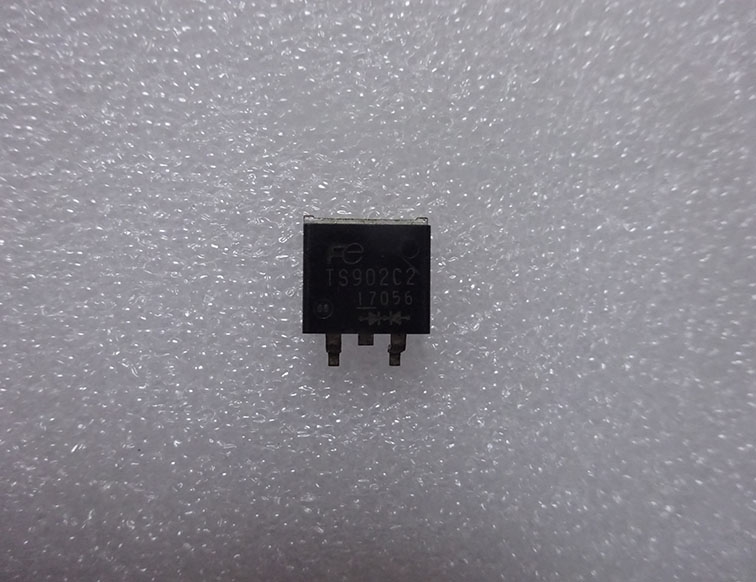

BUY TS902C2 https://www.utsource.net/itm/p/12612053.html

Parameter	Description	Min	Typ	Max	Unit
Supply Voltage (Vcc)	Operating supply voltage range	4.5	-	5.5	V
Input Voltage (Vin)	Maximum input voltage	-0.3	-	Vcc + 0.3	V
Output Voltage (Vout)	Output voltage range	0	-	Vcc	V
Quiescent Current (Iq)	Current consumed by the device when no load is applied	1.5	2.5	3.5	mA
Short-Circuit Current (Isc)	Maximum current when output is shorted to ground	-	100	-	mA
Operating Temperature (Toper)	Temperature range for normal operation	-40	-	85	掳C
Storage Temperature (Tstg)	Temperature range for storage	-65	-	150	掳C
Thermal Resistance (胃ja)	Junction-to-ambient thermal resistance	-	150	-	掳C/W

Instructions for Using TS902C2

1. Supply Voltage:

   • Ensure the supply voltage (Vcc) is within the range of 4.5V to 5.5V.
   • Avoid exceeding the maximum supply voltage to prevent damage to the device.

2. Input Voltage:

   • The input voltage (Vin) should not exceed Vcc + 0.3V or be less than -0.3V to avoid damaging the device.

3. Output Voltage:

   • The output voltage (Vout) can range from 0V to Vcc. Ensure the load connected to the output does not draw more current than the device can handle.

4. Quiescent Current:

   • The quiescent current (Iq) is the current consumed by the device when no load is applied. It typically ranges from 1.5mA to 3.5mA.

5. Short-Circuit Protection:

   • The device has built-in short-circuit protection, limiting the output current to approximately 100mA. However, prolonged short circuits can still cause overheating and potential damage.

6. Operating Temperature:

   • The device is designed to operate within a temperature range of -40掳C to 85掳C. Operating outside this range can affect performance and reliability.

7. Storage Temperature:

   • Store the device in a temperature range of -65掳C to 150掳C to ensure long-term reliability.

8. Thermal Management:

   • The junction-to-ambient thermal resistance (胃ja) is 150掳C/W. Ensure adequate heat dissipation to prevent the device from overheating, especially under high load conditions.

9. Handling Precautions:

   • Handle the device with care to avoid static discharge, which can damage sensitive components.
   • Use proper soldering techniques and follow recommended reflow profiles to ensure reliable connections.

10. Mounting:

    • Mount the device on a PCB with appropriate spacing and cooling considerations to maintain optimal performance.

By following these parameters and instructions, you can ensure the TS902C2 operates reliably and efficiently in your application.

(For reference only)
