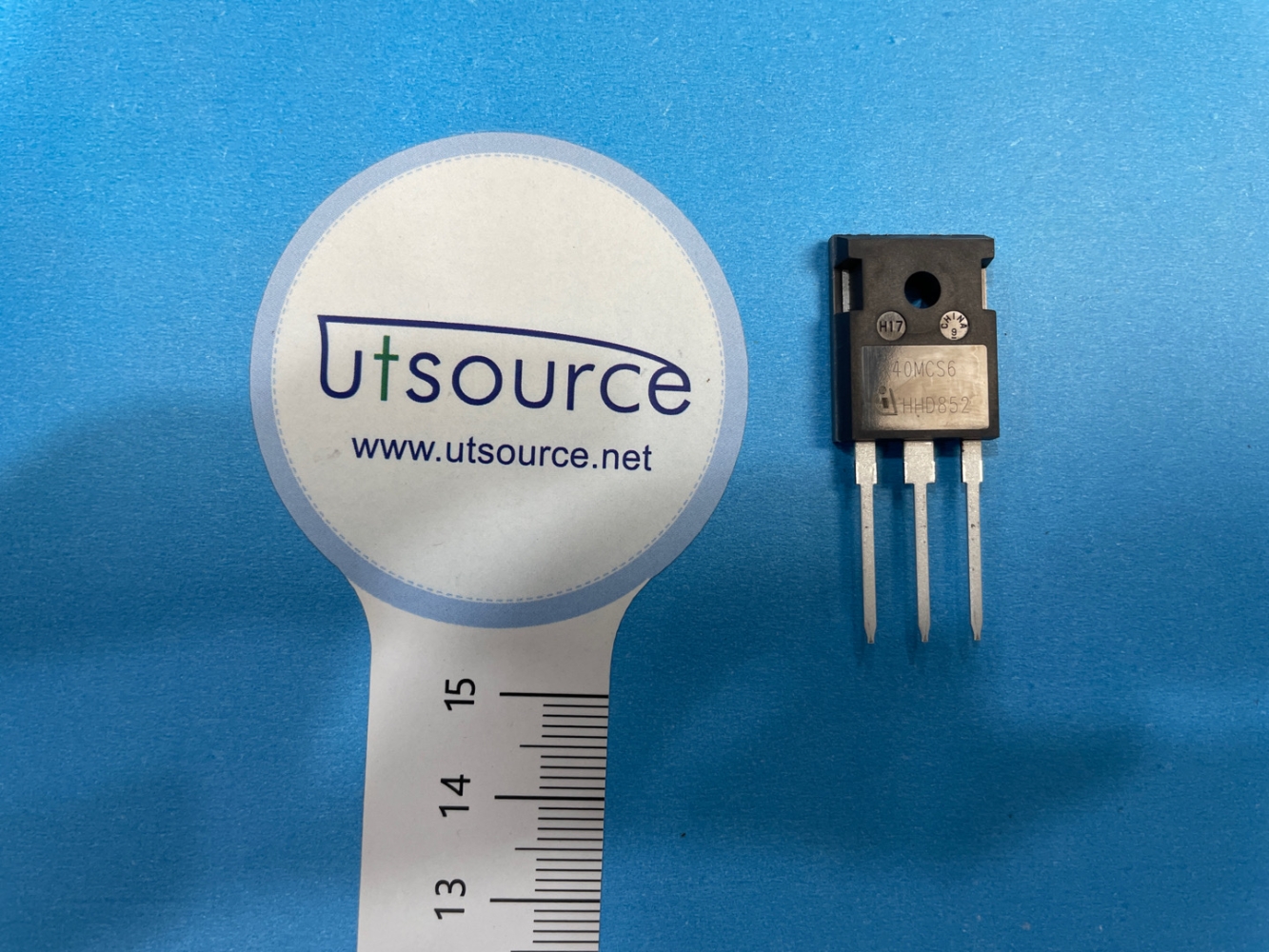

BUY K40MCS6 https://www.utsource.net/itm/p/12612054.html

Below is the parameter table and instructions for the K40MCS6 component:

K40MCS6 Parameter Table

Parameter	Symbol	Min	Typ	Max	Unit
Supply Voltage	Vcc	2.7	5.0	5.5	V
Operating Temperature	Ta	-40	-	85	掳C
Storage Temperature	Tstg	-65	-	150	掳C
Maximum Current	Icc	-	10	20	mA
Output High Voltage	VoH	2.4	4.5	5.0	V
Output Low Voltage	VoL	0.0	0.4	0.5	V
Input High Voltage	VIH	2.0	-	5.5	V
Input Low Voltage	VIL	0.0	-	0.8	V
Propagation Delay Time	tpd	5	10	15	ns
Power Dissipation	Pd	-	-	100	mW

Instructions for K40MCS6

1. Supply Voltage (Vcc):

   • Ensure the supply voltage is within the range of 2.7V to 5.5V.
   • Avoid exceeding the maximum voltage to prevent damage to the component.

2. Operating Temperature (Ta):

   • The component is designed to operate within the temperature range of -40掳C to 85掳C.
   • For extended reliability, avoid prolonged exposure to temperatures outside this range.

3. Storage Temperature (Tstg):

   • Store the component in an environment with temperatures between -65掳C and 150掳C.
   • Extreme temperatures can affect the performance and lifespan of the component.

4. Maximum Current (Icc):

   • The maximum current should not exceed 20mA to ensure reliable operation.
   • Typical current consumption is around 10mA.

5. Output High Voltage (VoH):

   • The output high voltage should be at least 2.4V and can go up to 5.0V.
   • This ensures proper logic levels for interfacing with other digital components.

6. Output Low Voltage (VoL):

   • The output low voltage should be below 0.5V, typically around 0.4V.
   • This ensures a clear distinction between high and low logic states.

7. Input High Voltage (VIH):

   • The input high voltage should be at least 2.0V and can go up to 5.5V.
   • This ensures the input is recognized as a high logic level.

8. Input Low Voltage (VIL):

   • The input low voltage should be below 0.8V.
   • This ensures the input is recognized as a low logic level.

9. Propagation Delay Time (tpd):

   • The propagation delay time is the time it takes for a change in input to result in a change in output.
   • Typical delay is around 10ns, with a minimum of 5ns and a maximum of 15ns.

10. Power Dissipation (Pd):

    • The maximum power dissipation is 100mW.
    • Ensure adequate heat dissipation to prevent overheating, especially in high-power applications.

Additional Notes:

• Always refer to the datasheet for the most accurate and detailed information.
• Proper decoupling capacitors should be used near the power pins to ensure stable operation.
• Follow good PCB layout practices to minimize noise and interference.

(For reference only)
