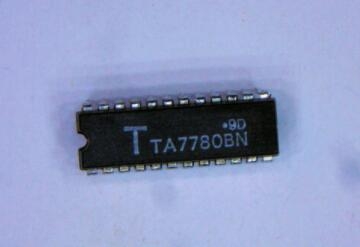

BUY TA7780BN https://www.utsource.net/itm/p/12612064.html

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	Vcc	Operating	4.5	-	22	V
Consumption Current	ICC	Operating, No Load	-	10	-	mA
Output Current	Iout	Continuous	-	1.2	1.5	A
Thermal Shutdown	TSD	-	-	130	-	掳C
Operating Temperature	Topr	-	-40	-	85	掳C
Storage Temperature	Tstg	-	-65	-	150	掳C

Instructions for Use

1. Supply Voltage:

   • Ensure the supply voltage (Vcc) is within the range of 4.5V to 22V to avoid damage to the device.

2. Consumption Current:

   • The typical consumption current (ICC) is 10mA when no load is connected. This value can vary slightly depending on the operating conditions.

3. Output Current:

   • The TA7780BN can provide a continuous output current (Iout) of up to 1.5A. For optimal performance, it is recommended to stay below the maximum rating.

4. Thermal Shutdown:

   • The device has a thermal shutdown feature that activates at approximately 130掳C to protect against overheating. Ensure proper heat dissipation to prevent thermal shutdown.

5. Operating Temperature:

   • The operating temperature range (Topr) is from -40掳C to 85掳C. Operating outside this range may affect performance or lead to device failure.

6. Storage Temperature:

   • The storage temperature range (Tstg) is from -65掳C to 150掳C. Store the device in a dry and temperature-controlled environment to ensure long-term reliability.

7. Mounting and Handling:

   • Handle the device with care to avoid static discharge and physical damage. Follow standard ESD (Electrostatic Discharge) precautions during handling and mounting.

8. Circuit Design:

   • Include appropriate decoupling capacitors near the power supply pins to stabilize the supply voltage and reduce noise.
   • Use a heatsink if the device will be operating at high currents or in high ambient temperatures to enhance heat dissipation.

9. Testing:

   • Before finalizing the design, conduct thorough testing under various operating conditions to ensure the device meets the required specifications.

10. Safety:

    • Ensure all connections are secure and properly insulated to prevent short circuits and electrical hazards.

(For reference only)
