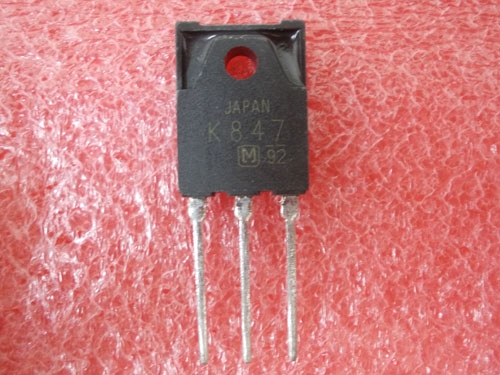

BUY 2SK847 https://www.utsource.net/itm/p/12612074.html

Parameter	Symbol	Value	Unit
Drain-Source Voltage (Max)	VDS(max)	500	V
Gate-Source Voltage (Max)	VGS(max)	卤20	V
Continuous Drain Current (Max)	ID(max)	1.5	A
Pulse Drain Current (Max)	IDP(max)	3.0	A
Total Power Dissipation (Max)	PD(max)	40	W
Junction Temperature (Max)	TJ(max)	175	掳C
Storage Temperature Range	TSTG	-55 to 150	掳C

Instructions for Use:

1. Mounting and Handling:

   • Ensure proper heat sinking when operating at high power levels.
   • Handle the device with care to avoid damage to leads or body.

2. Biasing Conditions:

   • Operate within specified VDS, VGS, and ID limits to ensure reliable performance.
   • Avoid exceeding the maximum gate-source voltage to prevent damage.

3. Thermal Considerations:

   • Monitor junction temperature to stay below the maximum allowable limit.
   • Proper ventilation or cooling solutions are recommended for extended operation.

4. Electrical Connections:

   • Connect the source terminal to a common ground.
   • Ensure that all connections are secure and insulated as necessary.

5. Storage and Operating Environment:

   • Store in a dry, cool environment within the storage temperature range.
   • Protect from static electricity during handling.

6. Testing:

   • Perform initial testing under controlled conditions to validate performance parameters.
   • Regularly check for any signs of overheating or abnormal behavior.

(For reference only)
