Parameter	Value	Unit
Type	Relay Module	-

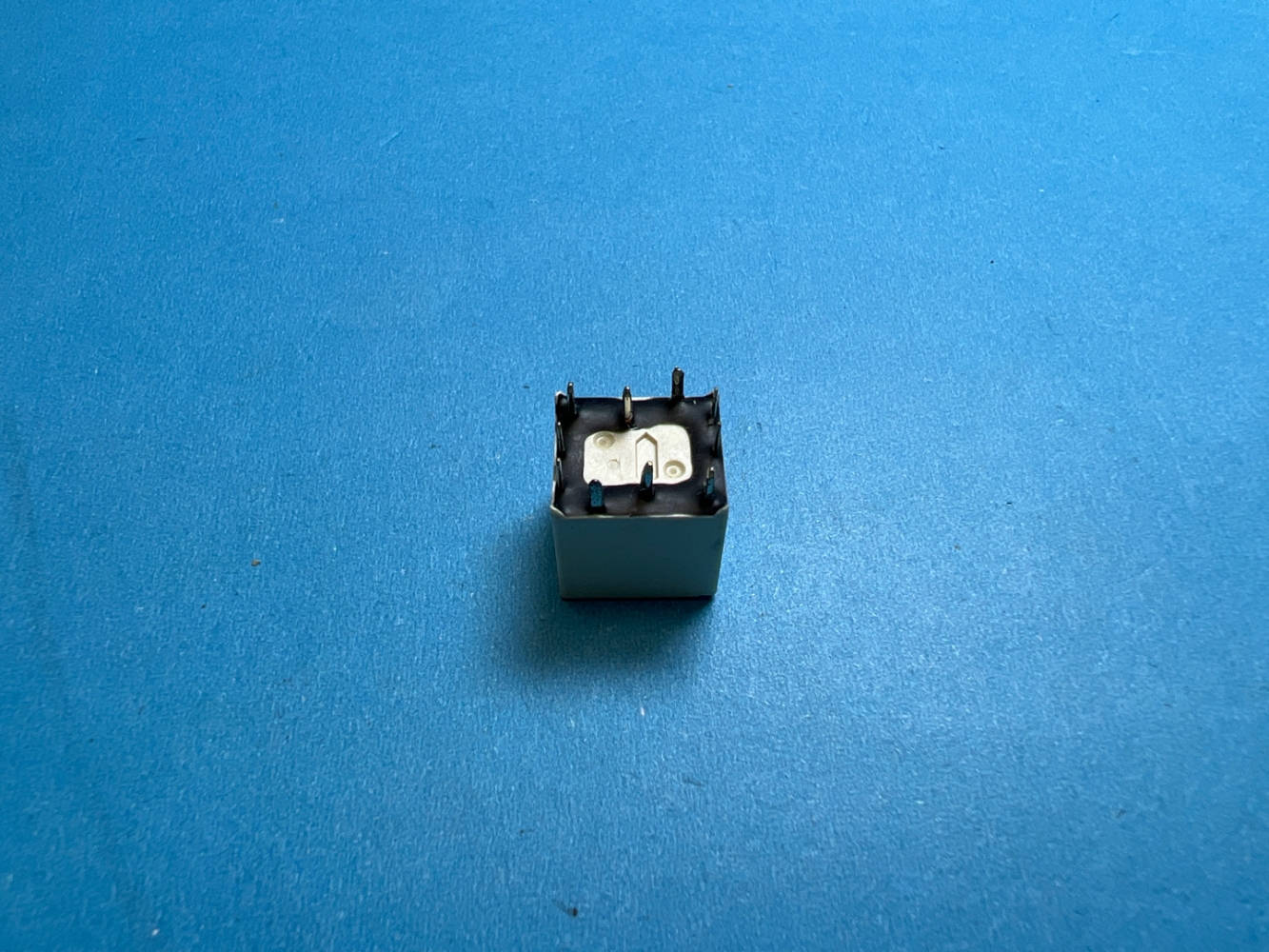

Model	EX2-2U1J	-
Number of Relays	2	-
Coil Voltage	5V	DC
Contact Form	SPDT	-
Contact Rating	10A	@ 250V AC
Insulation Voltage	2500V	AC
Operating Current	70mA	@ 5V DC
Operating Time	10ms	Max
Release Time	5ms	Max
Mechanical Life	10,000,000	Cycles
Electrical Life	100,000	Cycles
Operating Temp	-40 to 85	掳C
Storage Temp	-40 to 125	掳C
Humidity	5% to 95%	RH
Weight	30g	-

Instructions:

1. Power Supply:

   • Connect the 5V DC power supply to the VCC and GND terminals of the relay module.

2. Control Signals:

   • Connect the control signals to the IN1 and IN2 terminals. A high signal (5V) will activate the corresponding relay, and a low signal (0V) will deactivate it.

3. Load Connection:

   • Connect the load to the COM, NO (Normally Open), and NC (Normally Closed) terminals of each relay.
   • For normally open operation, connect the load between COM and NO.
   • For normally closed operation, connect the load between COM and NC.

4. Installation:

   • Mount the relay module on a flat, stable surface.
   • Ensure proper ventilation to prevent overheating.

5. Safety Precautions:

   • Do not exceed the maximum ratings specified for the relay contacts.
   • Avoid operating the module in environments with high humidity or corrosive gases.
   • Ensure that the power supply is disconnected before making any connections or modifications.

6. Testing:

   • After installation, test the relays by applying control signals and verifying the operation of the load.

7. Maintenance:

   • Regularly inspect the relay module for signs of wear or damage.
   • Clean the module with a dry, soft cloth if necessary.

(For reference only)
