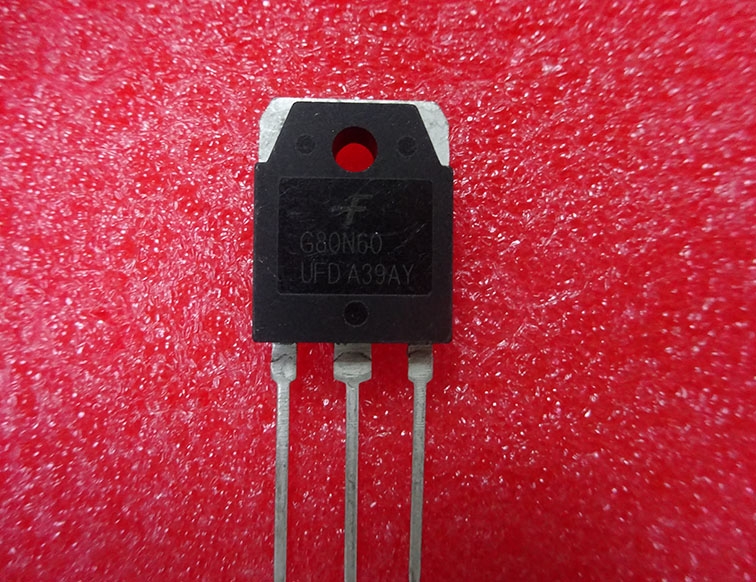

BUY SGH80N60UFDTU https://www.utsource.net/itm/p/12612167.html

Parameter	Symbol	Min	Typ	Max	Unit	Description
Drain-Source Voltage	VDSS	-	600	-	V	Maximum drain-to-source voltage
Gate-Source Voltage	VGS	-20	-	20	V	Maximum gate-to-source voltage
Continuous Drain Current	ID	-	8.0	-	A	Continuous drain current at TC = 25掳C
Pulse Drain Current	IDM	-	40	-	A	Pulse drain current (t < 10 渭s)
Power Dissipation	PD	-	150	-	W	Total power dissipation at TC = 25掳C
Junction Temperature	Tj	-55	-	175	掳C	Operating junction temperature range
Storage Temperature	Tstg	-55	-	175	掳C	Operating storage temperature range

Instructions for Use:

1. Installation:

   • Ensure that the SGH80N60UFDTU is handled with care to avoid damage to the leads and body.
   • Follow proper mounting techniques to ensure good thermal contact and mechanical stability.

2. Thermal Considerations:

   • For applications requiring high power dissipation, use an appropriate heat sink to maintain the junction temperature within specified limits.

3. Electrical Connections:

   • Connect the drain terminal to the high-voltage side of the circuit.
   • Connect the source terminal to the low-voltage side or ground.
   • Apply control signals to the gate terminal ensuring they do not exceed the maximum ratings.

4. Gate Drive Requirements:

   • The gate drive voltage should be within the specified range to prevent damage and ensure reliable operation.
   • Ensure the gate resistor is chosen to limit inrush currents and provide stable switching.

5. Overcurrent Protection:

   • Implement overcurrent protection circuits to safeguard against excessive drain currents which can lead to device failure.

6. Handling Precautions:

   • Be aware of electrostatic discharge (ESD) sensitivity and use ESD protective measures when handling the component.
   • Avoid exposing the device to environments exceeding the storage temperature range.

7. Testing:

   • Before final installation, test the device under controlled conditions to ensure it meets the required specifications and performance criteria.

(For reference only)
