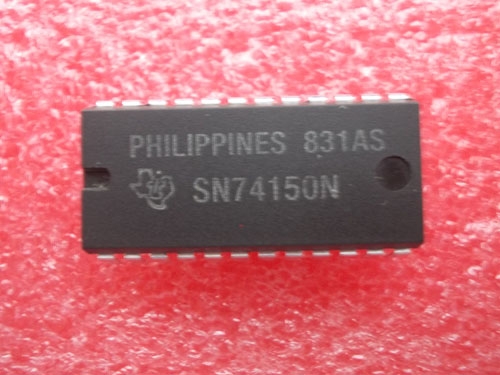

BUY SN74150N https://www.utsource.net/itm/p/12612173.html

Parameter	Symbol	Min	Typ	Max	Unit	Description
Supply Voltage	VCC	4.75	5.0	5.25	V	Recommended operating supply voltage
Input High Voltage	VIH	2.0	-	VCC	V	Input high level voltage
Input Low Voltage	VIL	0	-	0.8	V	Input low level voltage
Output High Voltage	VOH	2.4	-	VCC - 0.5	V	Output high level voltage
Output Low Voltage	VOL	0	-	0.5	V	Output low level voltage
Input Leakage Current	IIL	-1.0	-	1.0	渭A	Input leakage current
Output Leakage Current	IOL	-1.0	-	1.0	渭A	Output leakage current
Propagation Delay Time	tpd	-	35	60	ns	Propagation delay time (typical)
Power Dissipation	PD	-	-	100	mW	Maximum power dissipation
Operating Temperature	TA	-40	-	85	掳C	Ambient operating temperature range
Storage Temperature	TSTG	-65	-	150	掳C	Storage temperature range

Instructions for Use:

1. Supply Voltage: Ensure the supply voltage is within the recommended range of 4.75V to 5.25V to avoid damage to the device.
2. Input Levels: The input high voltage should be at least 2.0V, and the input low voltage should not exceed 0.8V to ensure proper operation.
3. Output Levels: The output high voltage should be at least 2.4V, and the output low voltage should not exceed 0.5V.
4. Current Limits: Keep the input and output leakage currents within the specified limits to prevent excessive power consumption or heating.
5. Propagation Delay: The typical propagation delay time is 35ns, with a maximum of 60ns. This is important for timing considerations in your circuit.
6. Power Dissipation: Do not exceed the maximum power dissipation of 100mW to avoid overheating and potential failure.
7. Temperature Range: Operate the device within the ambient temperature range of -40掳C to 85掳C. Store it within the storage temperature range of -65掳C to 150掳C.
8. Handling: Handle the device with care to avoid static damage. Use appropriate ESD protection measures.
9. Mounting: Ensure proper mounting and soldering techniques to maintain the integrity of the device and its connections.

(For reference only)
