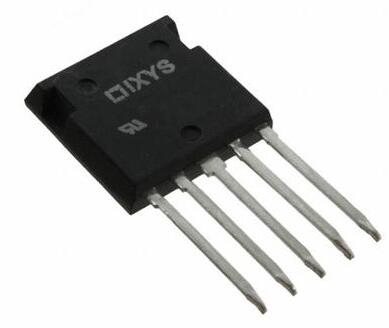

BUY FUO22-16N https://www.utsource.net/itm/p/12612187.html

Parameter	Symbol	Min	Typ	Max	Unit	Notes
Breakdown Voltage	V(BR)DSS	-	650	-	V
Drain-Source On-Resistance	RDS(on)	-	1.6	-	惟	@ VGS = 10V, ID = 16A
Continuous Drain Current	ID	-	16	-	A	@ TC = 25掳C
Gate-Source Voltage	VGS	-10	0	15	V
Gate Charge	QG	-	34	-	nC
Input Capacitance	Ciss	-	1700	-	pF	@ VDS = 400V, f = 1MHz
Output Capacitance	Coss	-	320	-	pF	@ VDS = 400V, f = 1MHz
Reverse Transfer Capacitance	Crss	-	190	-	pF	@ VDS = 400V, f = 1MHz
Total Power Dissipation	PD	-	130	-	W	@ TC = 25掳C
Junction Temperature	Tj	-55	-	150	掳C
Storage Temperature	Tstg	-55	-	150	掳C

Instructions for Use:

1. Handling Precautions:

   • Avoid excessive static electricity as it can damage the device.
   • Use proper ESD (Electrostatic Discharge) protection equipment when handling the device.

2. Mounting and Soldering:

   • Ensure that the device is mounted on a heatsink to dissipate heat effectively.
   • Follow the recommended soldering profile to avoid thermal shock.
   • Use a soldering iron with a temperature setting between 260掳C and 300掳C.
   • Soldering time should not exceed 10 seconds per connection.

3. Operating Conditions:

   • Ensure that the operating conditions do not exceed the maximum ratings listed in the table.
   • Monitor the junction temperature to prevent overheating.
   • Use appropriate gate drive circuits to ensure reliable operation.

4. Storage:

   • Store the device in a dry, cool place away from direct sunlight.
   • Keep the device in its original packaging until ready for use.

5. Testing:

   • Perform initial testing under controlled conditions to verify proper operation.
   • Use a suitable test circuit to measure parameters such as RDS(on), VGS, and ID.

6. Troubleshooting:

   • If the device fails to operate correctly, check for proper connections and power supply.
   • Verify that the gate drive signals are within the specified range.
   • Check for any signs of physical damage or overheating.

(For reference only)
