Details

---

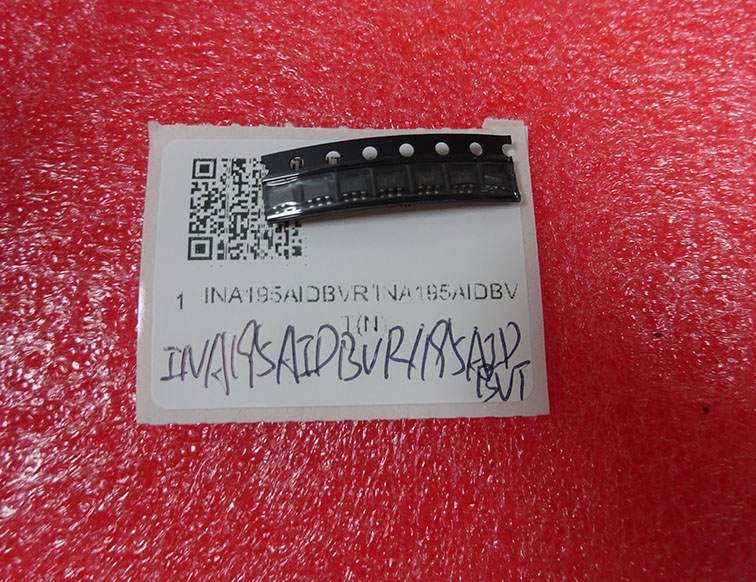

BUY INA195AIDBVR/INA195AIDBVT https://www.utsource.net/itm/p/12612194.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	VDD	-	2.7	-	5.5	V
Input Common-Mode Range	VCM	-	0	-	36	V
Differential Input Voltage	VD	-	卤36	-	卤36	V
Output Voltage Swing	VOUT	VDD = 5V, RL = 10k惟	0.1	-	4.9	V
Quiescent Current	IQ	-	-	1.3	-	mA
Bandwidth	fBW	-	-	800	-	kHz
CMRR	CMRR	-	-	100	-	dB
PSRR	PSRR	-	-	100	-	dB
Gain	AV	-	-	1000	-	V/V

Instructions for Use:

1. Power Supply:

   • Ensure the supply voltage (V_DD) is within the range of 2.7V to 5.5V.
   • Connect the power supply to the V_DD and GND pins.

2. Input Connections:

   • Connect the differential input signals to the IN+ and IN- pins.
   • The common-mode input voltage (V_CM) should be within the range of 0V to 36V.
   • The differential input voltage (V_D) can be up to 卤36V.

3. Output Configuration:

   • Connect the output pin (OUT) to the load resistor (RL).
   • Ensure the output voltage swing is within the range of 0.1V to 4.9V when V_DD is 5V and RL is 10k惟.

4. Quiescent Current:

   • The quiescent current (I_Q) is typically 1.3mA. This value should be considered in power budget calculations.

5. Bandwidth:

   • The bandwidth (f_BW) is 800kHz, which means the device can accurately amplify signals up to this frequency.

6. Common-Mode Rejection Ratio (CMRR):

   • The CMRR is 100dB, indicating high rejection of common-mode signals.

7. Power Supply Rejection Ratio (PSRR):

   • The PSRR is 100dB, indicating high immunity to power supply variations.

8. Gain:

   • The gain (A_V) is 1000 V/V, meaning the output voltage will be 1000 times the differential input voltage.

9. Handling Precautions:

   • Handle the device with care to avoid static damage.
   • Ensure proper heat dissipation if operating at high input voltages or currents.

10. Storage and Packaging:

    • Store the device in a dry, cool place.
    • Follow recommended handling and storage guidelines to prevent damage.

For more detailed information, refer to the datasheet provided by the manufacturer.

(For reference only)
