Details

---

BUY G3MB-202P-24VDC https://www.utsource.net/itm/p/12612227.html

Parameter	Description

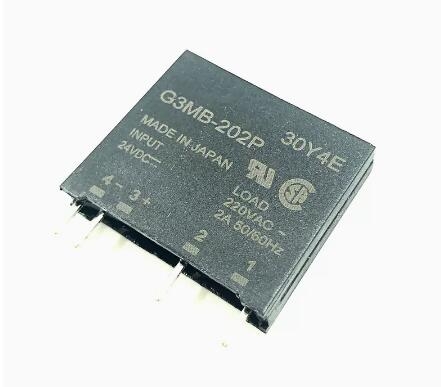

Model Number	G3MB-202P-24VDC
Type	Solid State Relay (SSR)
Input Voltage	3 to 32 VDC
Control Voltage	24 VDC
Load Voltage	AC: 120/230 V, DC: 24 to 280 V
Continuous Current	2 A (resistive load)
Peak Current	6 A (for 1 second)
Switching Method	Zero-crossing switching (AC), random turn-on (DC)
Isolation Voltage	5000 Vrms for 1 minute
Leakage Current	Max. 10 渭A
Operating Temp.	-40 to +85 掳C
Storage Temp.	-40 to +85 掳C
Dimensions	22.4 x 13.8 x 12.7 mm
Weight	Approx. 4 g

Instructions:

1. Installation:

   • Ensure the relay is mounted on a heatsink if continuous operation at high current or in high ambient temperatures is expected.
   • Use appropriate wiring and connectors that can handle the rated current and voltage.

2. Connection:

   • Connect the control circuit to the input terminals of the relay.
   • Connect the load circuit to the output terminals ensuring correct polarity for DC loads.

3. Operation:

   • Apply the control voltage to switch the relay ON/OFF.
   • For AC loads, the relay will switch at zero-crossing points to minimize electromagnetic interference.
   • For DC loads, the relay can switch at any point during the cycle.

4. Maintenance:

   • Regularly inspect connections for corrosion or looseness.
   • Ensure ventilation around the relay is adequate to prevent overheating.

5. Safety Precautions:

   • Do not exceed the maximum ratings as specified in the parameter table.
   • Handle with care to avoid damage from electrostatic discharge (ESD).
   • Disconnect power before performing any maintenance or installation.

(For reference only)
