Details

---

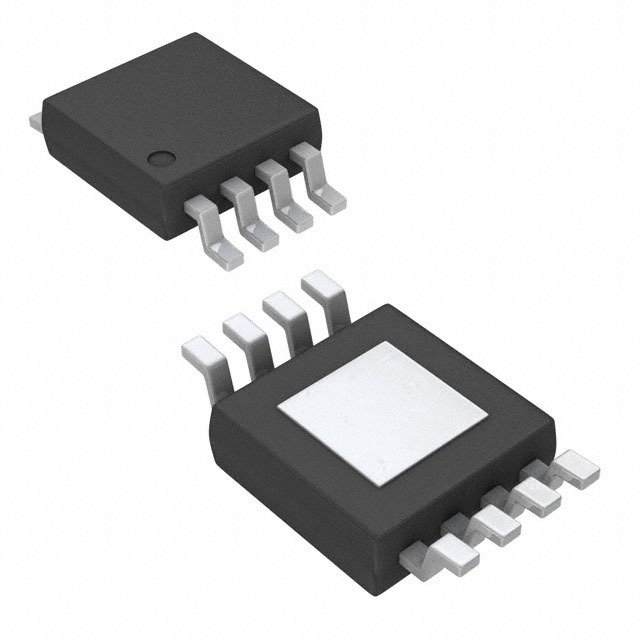

BUY TPS7A3001MDGNTEP https://www.utsource.net/itm/p/12612293.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Input Voltage	VIN	Continuous	1.5	-	5.5	V
Output Voltage	VOUT	Fixed	-	1.8, 2.5, 3.3	-	V
Dropout Voltage	VDROPOUT	IOUT = 100 mA, VOUT = 1.8 V	-	140	-	mV
Quiescent Current	IQ	VIN = 3.3 V, VOUT = 1.8 V, IOUT = 0 mA	-	16	-	μA
Shutdown Current	ISD	VIN = 3.3 V, EN = 0 V	-	0.1	-	μA
Load Regulation	ΔVOUT/ΔIOUT	IOUT = 0 to 100 mA, VIN = 3.3 V	-	0.5	-	%
Line Regulation	ΔVOUT/ΔVIN	VIN = 1.5 to 5.5 V, IOUT = 100 mA	-	0.05	-	%
PSRR (Power Supply Rejection Ratio)	PSRR	f = 100 Hz, VIN = 3.3 V, IOUT = 100 mA	-	70	-	dB
Operating Temperature Range	TOPR	-	-40	-	125	°C
Storage Temperature Range	TSTG	-	-65	-	150	°C

Instructions for Use:

1. Input Voltage (VIN):

   • Ensure the input voltage is within the range of 1.5 V to 5.5 V.
   • The input voltage should be stable and clean to avoid affecting the output regulation.

2. Output Voltage (VOUT):

   • The TPS7A3001MDGNTEP provides fixed output voltages of 1.8 V, 2.5 V, or 3.3 V.
   • Select the appropriate output voltage based on your application requirements.

3. Dropout Voltage (VDROPOUT):

   • The dropout voltage is 140 mV at 100 mA load current.
   • Ensure that the input voltage is at least 140 mV higher than the desired output voltage to maintain regulation.

4. Quiescent Current (IQ):

   • The quiescent current is 16 μA under typical operating conditions.
   • This low quiescent current makes the device suitable for battery-powered applications.

5. Shutdown Current (ISD):

   • When the enable pin (EN) is set to 0 V, the shutdown current is 0.1 μA.
   • Use this feature to conserve power when the device is not in use.

6. Load Regulation:

   • The load regulation is 0.5% over a load range from 0 to 100 mA.
   • This ensures that the output voltage remains stable even with varying load currents.

7. Line Regulation:

   • The line regulation is 0.05% over the input voltage range from 1.5 V to 5.5 V.
   • This ensures that the output voltage remains stable even with variations in the input voltage.

8. Power Supply Rejection Ratio (PSRR):

   • The PSRR is 70 dB at 100 Hz.
   • This high PSRR helps to filter out noise from the input supply, improving the quality of the output voltage.

9. Operating Temperature Range (TOPR):

   • The device can operate over a temperature range from -40°C to 125°C.
   • Ensure that the ambient temperature and thermal design allow the device to stay within this range.

10. Storage Temperature Range (TSTG):

    • The device can be stored at temperatures ranging from -65°C to 150°C.
    • Store the device in a dry environment to prevent damage from moisture.

Additional Notes:

• Capacitors:
  • Use ceramic capacitors with X7R dielectric for the input and output capacitors.
  • Typical values are 1 μF for both input and output capacitors.
• PCB Layout:
  • Place the input and output capacitors as close as possible to the device to minimize parasitic inductance.
  • Ensure good ground connections to reduce noise and improve stability.
• Enable Pin (EN):
  • The enable pin can be used to turn the device on and off.
  • A logic high on the EN pin enables the device, while a logic low disables it.

(For reference only)
