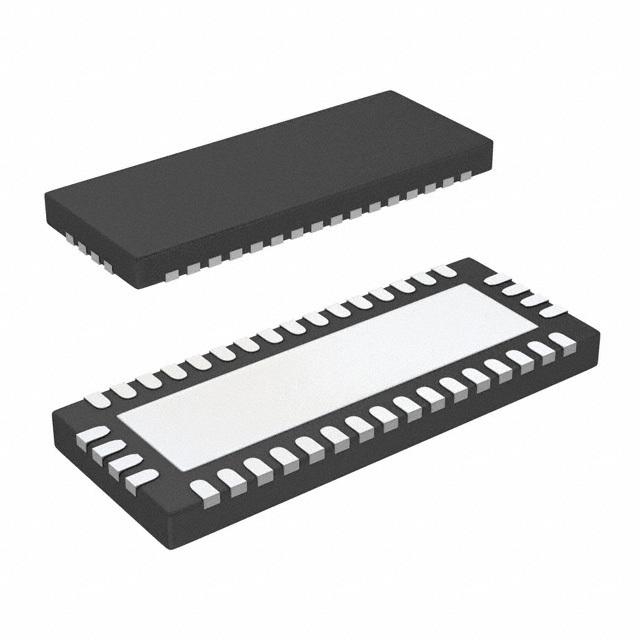

BUY HD3SS6126RUAR https://www.utsource.net/itm/p/12612303.html

Parameter	Description	Value	Unit
Supply Voltage (VDD)	Operating supply voltage range	2.7 to 5.5	V
Supply Current (IDD)	Quiescent supply current (Typical)	1.0	渭A
Channel Configuration	Number of channels	2	-
Channel Resistance (RON)	On-state resistance per channel (Typical)	0.8	惟
Channel Capacitance (Cin)	Input capacitance per channel (Typical)	4.5	pF
Switching Time (tON, tOFF)	Turn-on/turn-off time (Typical)	15	ns
Maximum Continuous Current (IOUT)	Continuous output current per channel	卤200	mA
Maximum Pulse Current (IOUT)	Peak pulse output current per channel	卤400	mA
Operating Temperature Range (TA)	Ambient operating temperature range	-40 to 85	掳C
Storage Temperature Range (TSTG)	Storage temperature range	-65 to 150	掳C
ESD Rating (HBM)	Human body model electrostatic discharge rating	2000	V
ESD Rating (MM)	Machine model electrostatic discharge rating	200	V
Package Type	Type of package	SOT-23-6	-

Instructions for Use:

1. Power Supply:

   • Ensure the supply voltage (VDD) is within the specified range of 2.7V to 5.5V.
   • Connect the supply voltage to the VDD pin and ground to the GND pin.

2. Channel Configuration:

   • The HD3SS6126RUAR has two channels. Each channel can be independently controlled.
   • Connect the input signals to the IN1 and IN2 pins, and the corresponding outputs will be available at OUT1 and OUT2.

3. Current Handling:

   • Do not exceed the maximum continuous current of 卤200mA or the peak pulse current of 卤400mA per channel.
   • Ensure that the load connected to the output does not draw more current than these limits.

4. Temperature Considerations:

   • Operate the device within the ambient temperature range of -40掳C to 85掳C.
   • Store the device within the storage temperature range of -65掳C to 150掳C.

5. ESD Protection:

   • Handle the device with care to avoid electrostatic discharge (ESD).
   • Use appropriate ESD protection measures during handling and installation.

6. Layout and PCB Design:

   • Use short traces for high-frequency signals to minimize parasitic inductance and capacitance.
   • Ensure proper grounding and decoupling capacitors are used to maintain stable operation.

7. Testing and Verification:

   • Before finalizing the design, test the device under various operating conditions to ensure it meets the required specifications.
   • Verify the switching times and on-state resistance to ensure optimal performance.

(For reference only)
