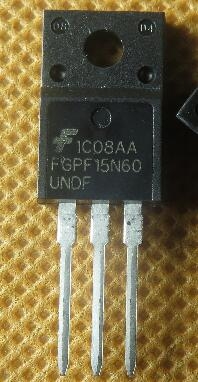

BUY FGP15N60UNDF https://www.utsource.net/itm/p/12612310.html

Parameter	Symbol	Value	Unit
Maximum Drain-to-Source Voltage	VDS(max)	600	V
Maximum Gate-to-Source Voltage	VGS(max)	卤20	V
Continuous Drain Current (Tc = 25掳C)	ID(25掳C)	15	A
Continuous Drain Current (Tc = 100掳C)	ID(100掳C)	7	A
Pulse Drain Current (tp = 10 渭s, IG = 10 A)	ID(p)	45	A
Total Power Dissipation (Tc = 25掳C)	PTOT(25掳C)	300	W
Total Power Dissipation (Tc = 100掳C)	PTOT(100掳C)	150	W
Junction Temperature Range	TJ	-55 to +150	掳C
Storage Temperature Range	TSTG	-55 to +150	掳C
Thermal Resistance, Junction to Case	R胃JC	1.0	掳C/W
Input Capacitance (VGS = 15 V, f = 1 MHz)	Ciss	2200	pF
Output Capacitance (VDS = 15 V, VGS = 0 V, f = 1 MHz)	Coss	180	pF
Gate Charge (VGS = 15 V, ID = 1 A)	QG	90	nC

Instructions for Use:

1. Handling Precautions:

   • Handle the FGP15N60UNDF with care to avoid damage to the leads and body.
   • Use proper ESD (Electrostatic Discharge) protection when handling the device to prevent damage from static electricity.

2. Mounting:

   • Ensure that the mounting surface is clean and free of contaminants.
   • Apply thermal paste or a thermal pad between the device and the heatsink to improve heat dissipation.
   • Secure the device using the appropriate mounting hardware to ensure good thermal contact and mechanical stability.

3. Electrical Connections:

   • Connect the drain, source, and gate terminals correctly according to the circuit diagram.
   • Use short, low-inductance leads to minimize parasitic effects.
   • Ensure that the gate drive circuitry is designed to provide sufficient drive current and voltage to switch the MOSFET quickly and efficiently.

4. Thermal Management:

   • Monitor the junction temperature to ensure it stays within the specified range.
   • Use a heatsink or cooling solution to dissipate heat effectively, especially during high-power operation.

5. Operational Considerations:

   • Operate the device within its specified voltage and current ratings to avoid damage.
   • Ensure that the gate-to-source voltage does not exceed the maximum rating.
   • Use appropriate snubber circuits if necessary to protect against voltage spikes and ringing.

6. Storage:

   • Store the device in a dry, cool environment to prevent moisture damage.
   • Keep the device in its original packaging until ready for use to protect it from physical damage and ESD.

7. Testing:

   • Perform initial testing at low power levels to verify proper operation before increasing the load.
   • Use a multimeter or oscilloscope to check the continuity and functionality of the device.

By following these instructions, you can ensure reliable and efficient operation of the FGP15N60UNDF MOSFET.

(For reference only)
