Details

---

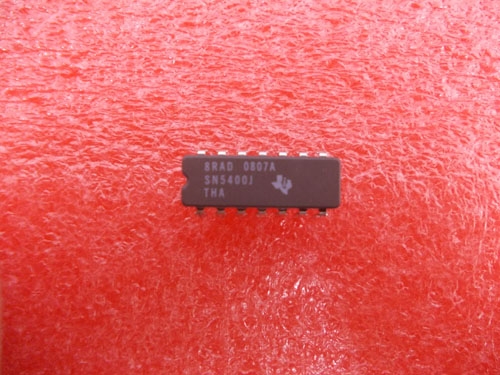

BUY SN5400J https://www.utsource.net/itm/p/12612331.html

Parameter	Description	Min	Typ	Max	Unit
VCC	Supply Voltage	4.75	5.0	5.25	V
ICC	Supply Current (Quiescent)	-	10	-	mA
VIH	Input High Voltage	3.15	-	5.25	V
VIL	Input Low Voltage	0	-	2.1	V
VOH	Output High Voltage (IOL = 0.4 mA)	2.4	-	5.0	V
VOL	Output Low Voltage (IOH = -8.0 mA)	0	-	0.6	V
IOH	Output High Current	-	-	-8.0	mA
IOL	Output Low Current	-	-	8.0	mA
tpd	Propagation Delay Time	12	15	18	ns
tphl	High-to-Low Propagation Delay Time	12	15	18	ns
tplh	Low-to-High Propagation Delay Time	12	15	18	ns
tskew	Skew (Maximum Difference in tpd)	-	-	3	ns
Operating Temperature Range	-	-40	-	85	掳C
Storage Temperature Range	-	-65	-	150	掳C

Instructions for Use:

1. Power Supply:

   • Ensure the supply voltage (V_CC) is within the specified range of 4.75V to 5.25V.
   • The quiescent current (I_CC) should not exceed 10mA.

2. Input Levels:

   • For a valid high input (V_IH), the voltage must be between 3.15V and 5.25V.
   • For a valid low input (V_IL), the voltage must be between 0V and 2.1V.

3. Output Levels:

   • When the output is high (V_OH), it should be at least 2.4V when sourcing 0.4mA.
   • When the output is low (V_OL), it should be no more than 0.6V when sinking 8.0mA.

4. Propagation Delays:

   • The propagation delay time (t_pd) from input to output should be between 12ns and 18ns.
   • The high-to-low propagation delay time (t_phl) and low-to-high propagation delay time (t_plh) should also be within this range.

5. Skew:

   • The maximum skew (t_skew) between different outputs should not exceed 3ns.

6. Temperature Ranges:

   • The device can operate within a temperature range of -40掳C to 85掳C.
   • For storage, the temperature range is -65掳C to 150掳C.

7. Handling:

   • Handle with care to avoid static damage.
   • Follow proper soldering techniques to ensure reliable connections.

8. Applications:

   • Suitable for digital logic circuits requiring fast switching times and low power consumption.

(For reference only)
