Details

---

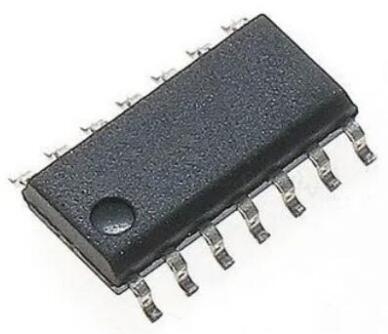

BUY CS2841BD14G https://www.utsource.net/itm/p/12612344.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Supply Voltage	VDD	Operating Range	2.7	-	5.5	V
Output Voltage	VOUT		-	3.3	-	V
Load Current	ILOAD	Continuous	-	1.0	1.5	A
Quiescent Current	IQ	No Load	-	40	-	渭A
Efficiency	畏	@ ILOAD = 1A	-	90	-	%
Dropout Voltage	VDROPOUT	@ ILOAD = 1A	-	250	-	mV
Operating Temperature	TOPR	Storage	-40	-	85	掳C

Instructions for CS2841BD14G

1. Power Supply Connection:

   • Connect the positive terminal of the power supply to the VDD pin.
   • Ensure the supply voltage is within the operating range of 2.7V to 5.5V.

2. Output Configuration:

   • The output voltage (VOUT) is typically set at 3.3V. Verify this setting matches your application requirements.

3. Load Handling:

   • The device can handle a continuous load current up to 1.5A, with optimal performance at 1A.

4. Efficiency Optimization:

   • For maximum efficiency, operate the device under conditions where the load current is around 1A.

5. Thermal Management:

   • Ensure adequate heat dissipation if operating near the upper limit of the load current or in environments approaching the maximum operating temperature.

6. Storage and Operation Temperature:

   • Store and operate the device within the temperature range of -40掳C to 85掳C to ensure reliability and longevity.

7. Quiescent Current Consideration:

   • Be aware that the quiescent current is 40渭A when there is no load, which may be important for low-power applications.

8. Dropout Voltage Awareness:

   • The dropout voltage is 250mV at a load current of 1A. Ensure the input voltage exceeds the sum of the desired output voltage and the dropout voltage.

(For reference only)
