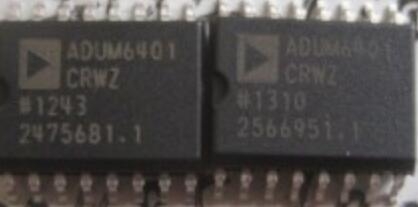

BUY ADUM6401CRWZ https://www.utsource.net/itm/p/12612358.html

Parameter	Symbol	Min	Typ	Max	Unit	Description
Supply Voltage	VDD1	3.0		5.5	V	Supply voltage for Channel 1
Supply Voltage	VDD2	3.0		5.5	V	Supply voltage for Channel 2
Isolation Voltage	VIORM			5.0	kV	Maximum repetitive peak isolation voltage
Working Isolation Voltage	VIOWM			2.5	kV	Maximum working isolation voltage
Propagation Delay	tPD	16	22	28	ns	Propagation delay, differential input
Pulse Width Distortion	tPWD	0.4	1.5	3.0	ns	Pulse width distortion
Common Mode Transient Immunity	CMR	25			kV/渭s	Minimum common mode transient immunity
Operating Temperature Range	TOPR	-40		125	掳C	Operating temperature range
Storage Temperature Range	TSTG	-65		150	掳C	Storage temperature range

Instructions for ADUM6401CRWZ:

1. Power Supply Configuration:

   • Connect VDD1 and VDD2 to appropriate power supplies within the specified voltage range (3.0V to 5.5V).
   • Ensure proper decoupling capacitors are placed close to the power supply pins.

2. Signal Routing:

   • Route differential signals carefully to minimize noise and crosstalk.
   • Maintain impedance matching if high-speed signals are used.

3. Isolation Considerations:

   • Respect the maximum isolation voltage ratings to ensure safe operation.
   • Avoid exceeding the working isolation voltage during normal operation.

4. Temperature Management:

   • Operate within the specified temperature ranges to ensure reliable performance.
   • Provide adequate heat dissipation if operating near the upper temperature limits.

5. Handling Precautions:

   • Handle with care as ESD-sensitive components.
   • Follow anti-static precautions when handling or soldering the device.

6. Testing and Debugging:

   • Use isolated test equipment to avoid damaging the device.
   • Verify all connections and configurations before applying power.

7. Installation:

   • Ensure proper PCB layout guidelines are followed to maintain signal integrity and isolation effectiveness.
   • Place the component in a location that minimizes exposure to electromagnetic interference (EMI).

(For reference only)
