Details

---

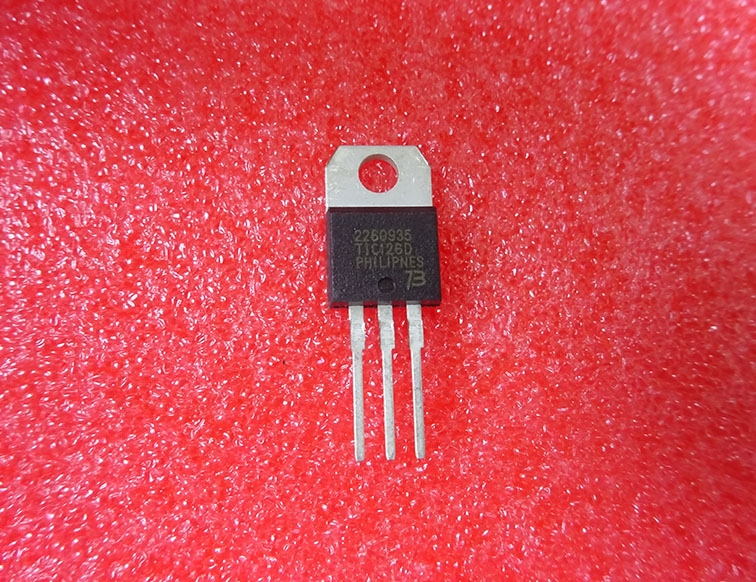

BUY TIC126D https://www.utsource.net/itm/p/12612410.html

Parameter	Symbol	Min	Typical	Max	Unit
Repetitive Peak Off-State Voltage	V DRM	-	600	-	V
Repetitive Peak Reverse Voltage	V RRM	-	600	-	V
On-State Voltage at I T(RMS) = 40 A, T J = 25掳C	V TM	-	1.1	-	V
On-State Voltage at I T(RMS) = 40 A, T J = 100掳C	V TM	-	1.3	-	V
Latching Current at T A = 25掳C	I L	28	-	40	mA
Holding Current at T A = 25掳C	I H	10	-	15	mA
Gate Trigger Current (Peak) at T A = 25掳C	I GT	5	-	15	mA
Gate Trigger Voltage (Peak) at T A = 25掳C	V GT	1.5	-	3.0	V
Maximum Junction Temperature	T J	-	-	125	掳C
Storage Temperature Range	T STG	-40	-	125	掳C

Instructions for Using TIC126D

1. Mounting and Handling:

   • Ensure the device is mounted on a heatsink to maintain the junction temperature within safe limits.
   • Handle the device with care to avoid damage to the leads and the body.

2. Circuit Design:

   • Use a snubber circuit (resistor and capacitor in series) across the thyristor to protect against voltage transients.
   • Ensure that the gate trigger current and voltage are within the specified limits to avoid misfiring or failure.

3. Operating Conditions:

   • Do not exceed the maximum ratings for repetitive peak off-state voltage, repetitive peak reverse voltage, and maximum junction temperature.
   • Keep the operating current within the rated RMS current to prevent overheating and potential failure.

4. Testing and Troubleshooting:

   • Test the device in a controlled environment to ensure it meets the specified parameters.
   • If the device fails to latch or hold, check the gate trigger circuit and the supply voltage.

5. Storage and Transportation:

   • Store the device in a dry, cool place away from direct sunlight and extreme temperatures.
   • During transportation, use anti-static packaging to protect the device from electrostatic discharge (ESD).

6. Safety Precautions:

   • Always follow safety guidelines when handling high-voltage circuits.
   • Use appropriate personal protective equipment (PPE) such as gloves and safety glasses.

By following these instructions, you can ensure the reliable operation and longevity of the TIC126D thyristor.

(For reference only)
