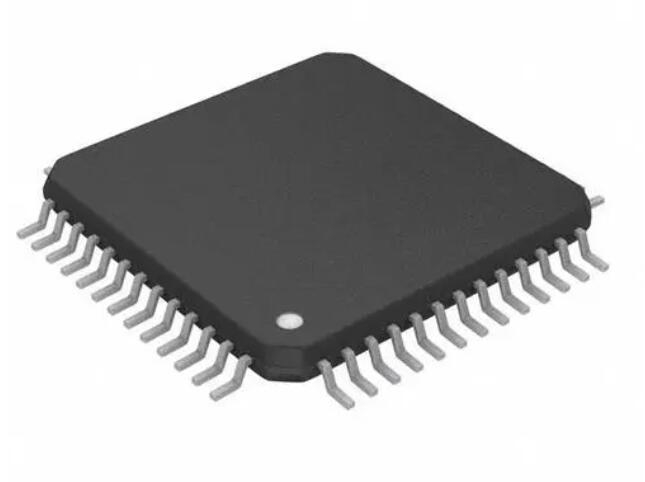

BUY TZA3001AHL/C4 https://www.utsource.net/itm/p/12612416.html

Parameter	Symbol	Min	Typical	Max	Unit	Notes
Supply Voltage	Vcc	2.7	-	5.5	V
Output Current (Continuous)	Iout	-	1.5	3	A	Depends on thermal conditions
Quiescent Current	Iq	-	50	100	μA
Shutdown Current	Isd	-	1	2	μA
Operating Temperature	Topr	-40	-	125	°C
Storage Temperature	Tstg	-65	-	150	°C
Thermal Resistance (Junction to Ambient)	RθJA	-	60	-	°C/W
Output Voltage Range	Vout	0.8	-	5	V	Adjustable via external resistors
Dropout Voltage	Vdo	-	0.3	0.6	V	At Iout = 3A
Load Regulation	ΔVout/ΔIout	-	0.1%	0.3%	-
Line Regulation	ΔVout/ΔVin	-	0.1%	0.3%	-

Instructions for Use:

1. Power Supply Connection:

   • Connect the supply voltage (Vcc) to the input pin.
   • Ensure the supply voltage is within the specified range (2.7V to 5.5V).

2. Output Configuration:

   • Set the output voltage (Vout) by connecting external resistors to the feedback (FB) pin.
   • The output voltage can be adjusted between 0.8V and 5V.

3. Thermal Management:

   • Place the device on a suitable heat sink or PCB with adequate copper area to manage heat dissipation.
   • Ensure the thermal resistance (RθJA) is within the specified limit to avoid overheating.

4. Shutdown Function:

   • To disable the output, pull the shutdown (SD) pin low.
   • The shutdown current (Isd) will be minimal when the SD pin is low.

5. Operating Conditions:

   • Operate the device within the specified temperature ranges (operating: -40°C to 125°C, storage: -65°C to 150°C).
   • Monitor the load current to ensure it does not exceed the maximum continuous output current (3A).

6. Stability:

   • Use appropriate output capacitors to ensure stability. Typically, a 10μF ceramic capacitor is recommended.

7. Layout Considerations:

   • Keep the input and output capacitors close to the device to minimize noise and improve transient response.
   • Use wide traces for power connections to reduce resistance and voltage drops.

8. Testing:

   • Before finalizing the design, test the device under various operating conditions to ensure it meets the required performance specifications.

(For reference only)
