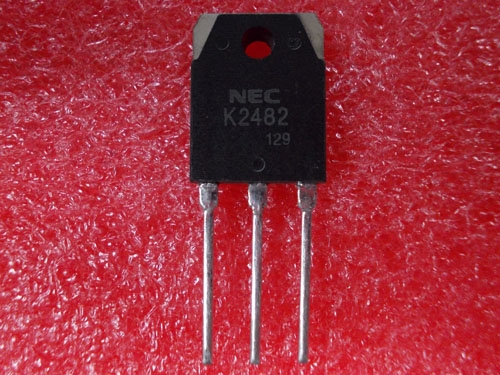

BUY 2SK2482 https://www.utsource.net/itm/p/12612418.html

Parameter	Symbol	Value	Unit	Notes
Drain-Source Voltage	V(DS)	200	V	Maximum rating
Gate-Source Voltage	V(GS)	±20	V	Maximum rating
Drain Current	I(D)	10	A	Maximum continuous
Pulse Drain Current	I(DM)	50	A	Pulse width ≤ 300 μs
Power Dissipation	P(TOT)	160	W	Case temperature = 25°C
Junction Temperature	T(J)	-55 to 175	°C	Operating range
Storage Temperature	T(STG)	-55 to 150	°C
Thermal Resistance	R(θJC)	0.9	°C/W	Junction to case

Instructions for Use:

1. Mounting: Ensure proper heat sinking when operating at high power levels to maintain junction temperature within specified limits.
2. Voltage Handling: Do not exceed the maximum drain-source voltage (V(DS)) of 200V to prevent damage.
3. Current Limitations: Continuous operation should not exceed 10A drain current. For pulse operations, up to 50A is permissible for pulse widths ≤ 300 μs.
4. Temperature Management: Keep the junction temperature between -55°C and 175°C for reliable operation. Store in environments where temperatures do not fall below -55°C or rise above 150°C.
5. Gate Protection: Protect the gate-source voltage from exceeding ±20V to avoid damaging the device.
6. Thermal Consideration: Use the thermal resistance value to design appropriate cooling mechanisms, ensuring that the junction does not overheat under load.

(For reference only)
