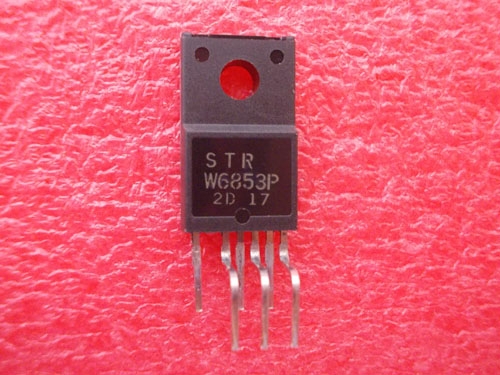

BUY STRW6853P https://www.utsource.net/itm/p/12612422.html

Parameter	Symbol	Min	Typ	Max	Unit	Description
Supply Voltage	Vcc	4.5	5.0	5.5	V	Operating supply voltage
Standby Current	Icc	-	1.2	2.0	渭A	Supply current in standby mode
Operating Current	Iop	10	20	30	mA	Maximum operating current
Output Voltage	Vo	3.3	3.3	3.3	V	Regulated output voltage
Output Current	Io	0	1.5	2.0	A	Maximum continuous output current
Dropout Voltage	Vdo	0.2	0.3	0.5	V	Dropout voltage at maximum load
Quiescent Current	Iq	10	20	30	渭A	Quiescent current
Thermal Shutdown	TSD	150	-	-	掳C	Thermal shutdown temperature
Operating Temperature	Topr	-40	-	85	掳C	Operating temperature range
Storage Temperature	Tstg	-65	-	150	掳C	Storage temperature range
Junction Temperature	Tj	-40	-	150	掳C	Maximum junction temperature

Instructions for STRW6853P

1. Supply Voltage (Vcc):

   • Ensure the supply voltage is within the specified range of 4.5V to 5.5V to avoid damage or malfunction.

2. Standby Current (Icc):

   • The device consumes a typical current of 1.2渭A in standby mode. Ensure this is accounted for in power budget calculations.

3. Operating Current (Iop):

   • The device can operate with a maximum current of 30mA. Ensure the power supply can provide this current.

4. Output Voltage (Vo):

   • The regulated output voltage is fixed at 3.3V. No external components are required for this regulation.

5. Output Current (Io):

   • The maximum continuous output current is 2.0A. Ensure the load does not exceed this limit to prevent overheating or damage.

6. Dropout Voltage (Vdo):

   • The dropout voltage is the difference between the input and output voltages at maximum load. It should be kept below 0.5V to maintain regulation.

7. Quiescent Current (Iq):

   • The quiescent current is the current consumed by the regulator when no load is applied. It is typically 20渭A.

8. Thermal Shutdown (TSD):

   • The device will shut down if the junction temperature exceeds 150掳C to prevent damage. Ensure proper heat dissipation.

9. Operating Temperature (Topr):

   • The device is designed to operate within a temperature range of -40掳C to 85掳C. Ensure the ambient temperature is within this range.

10. Storage Temperature (Tstg):

    • The device can be stored in temperatures ranging from -65掳C to 150掳C without damage.

11. Junction Temperature (Tj):

    • The maximum junction temperature should not exceed 150掳C. Use appropriate thermal management techniques to keep the junction temperature within safe limits.

12. Mounting and Handling:

    • Handle the device with care to avoid static discharge. Follow standard ESD precautions.
    • Mount the device on a PCB with adequate copper area for heat dissipation if high currents are expected.

13. Testing:

    • Before final assembly, test the device under typical operating conditions to ensure it meets the specifications.

14. Applications:

    • Suitable for applications requiring a stable 3.3V output, such as microcontrollers, sensors, and other low-power electronics.

(For reference only)
