Parameter	Description

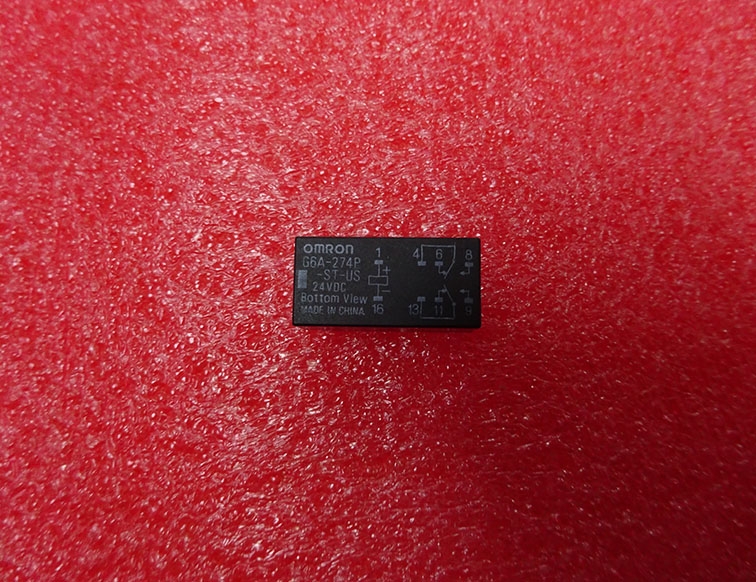

Part Number	G6A-274P-ST-US-24VDC
Type	Relay Module
Input Voltage	24 VDC
Input Current	10 mA (max)
Contact Form	SPDT (Single Pole Double Throw)
Contact Rating	5 A at 250 VAC / 30 VDC
Coil Resistance	240 惟 (nominal)
**Insulation Resistance	100 M惟 (min) at 500 VDC
Dielectric Strength	1500 VAC (rms) for 1 minute
**Operating Temperature	-25掳C to +70掳C
Storage Temperature	-40掳C to +85掳C
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	10 to 55 Hz, 1.5 mm amplitude, 3 hours in each axis
Shock Resistance	50 g, 11 ms duration, 3 times in each axis
Mounting	DIN rail or panel mount
Weight	50 g (approx.)

Instructions:

1. Installation:

   • Ensure the relay module is installed in a well-ventilated area.
   • Mount the relay on a DIN rail or a suitable panel using the provided mounting clips.

2. Wiring:

   • Connect the 24 VDC power supply to the input terminals (L+ and L-).
   • Connect the load to the output contacts (COM, NO, NC).

3. Operation:

   • The relay will switch the contacts when the input voltage is applied.
   • Ensure the load current does not exceed the contact rating to avoid damage.

4. Maintenance:

   • Regularly inspect the relay for any signs of wear or damage.
   • Clean the contacts with a dry, lint-free cloth if necessary.

5. Safety:

   • Always disconnect the power before performing any maintenance or wiring changes.
   • Use appropriate personal protective equipment (PPE) when handling electrical components.

(For reference only)
