Details

---

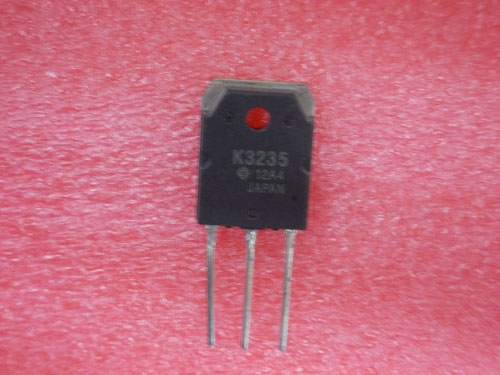

BUY 2SK3235 https://www.utsource.net/itm/p/12612497.html

Parameter	Symbol	Min	Typ	Max	Unit	Description
Drain-Source Voltage	V(DS)	-	-	100	V	Maximum continuous drain-to-source voltage
Gate-Source Voltage	V(GS)	-10	-	10	V	Maximum gate-to-source voltage
Drain Current	I(D)	-	-	10	A	Maximum continuous drain current
Gate Current	I(G)	-	-	1	mA	Maximum continuous gate current
Power Dissipation	P(T)	-	-	120	W	Maximum power dissipation (at Tc = 25掳C)
Junction Temperature	T(j)	-	-	175	掳C	Maximum junction temperature
Storage Temperature	T(stg)	-55	-	150	掳C	Operating storage temperature range

Instructions for Use:

1. Handling:

   • Handle the 2SK3235 with care to avoid damage to the leads and the semiconductor structure.
   • Use proper ESD (Electrostatic Discharge) precautions to prevent damage from static electricity.

2. Mounting:

   • Ensure proper heat sinking to manage the maximum power dissipation.
   • Use a thermal compound between the device and the heat sink to improve thermal conductivity.

3. Biasing:

   • Apply the gate voltage within the specified limits to avoid gate damage.
   • Ensure the drain current does not exceed the maximum rating to prevent overheating and potential failure.

4. Operation:

   • Operate the device within the specified temperature range to ensure reliable performance.
   • Monitor the junction temperature to avoid exceeding the maximum allowable temperature.

5. Testing:

   • Use appropriate test equipment and procedures to measure the parameters accurately.
   • Follow the datasheet recommendations for test conditions and methods.

6. Storage:

   • Store the 2SK3235 in a dry, cool place to prevent moisture damage.
   • Keep the devices in their original packaging until ready for use to protect them from physical damage and contamination.

(For reference only)
