Parameter	Description	Value

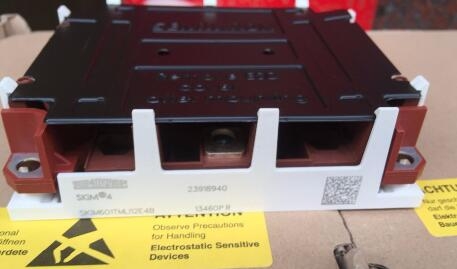

Part Number	Unique identifier for the component	SKIM601TMLI12E4B
Type	Category of the component	IGBT Module
Package	Physical package type	62mm x 62mm
Voltage Rating (VDC)	Maximum voltage the device can handle	1200V
Current Rating (IC)	Continuous current rating at 25掳C	600A
Switching Frequency	Typical switching frequency range	Up to 20kHz
Thermal Resistance (Rth(j-c))	Thermal resistance from junction to case	0.12 K/W
Operating Temperature Range	Temperature range for operation	-40掳C to +150掳C
Storage Temperature Range	Temperature range for storage	-55掳C to +150掳C
Isolation Voltage (VIORM)	Maximum isolation voltage between terminals	2500V
Mounting Torque	Recommended torque for mounting screws	20-25 Nm
Weight	Weight of the module	350g

Instructions:

1. Handling and Storage:

   • Store the module in a dry, clean environment within the specified temperature range.
   • Handle the module with care to avoid mechanical damage.

2. Mounting:

   • Use the recommended mounting torque (20-25 Nm) to ensure proper contact and heat dissipation.
   • Ensure that the mounting surface is flat and clean to prevent any air gaps.

3. Electrical Connections:

   • Connect the terminals according to the datasheet diagram to avoid incorrect polarity and potential damage.
   • Use appropriate wire gauges to handle the rated current.

4. Thermal Management:

   • Ensure adequate cooling to keep the junction temperature within the operating range.
   • Use thermal paste or a thermal pad between the module and the heatsink for better thermal conductivity.

5. Testing:

   • Perform initial testing at low power levels to verify correct installation and connections.
   • Gradually increase the power levels while monitoring temperatures and performance.

6. Safety:

   • Follow all safety guidelines and use appropriate protective equipment when handling high-voltage and high-current components.
   • Ensure that the module is properly insulated and isolated from other conductive parts.

(For reference only)
