Parameter	Value	Unit
Type	IGBT Module	-

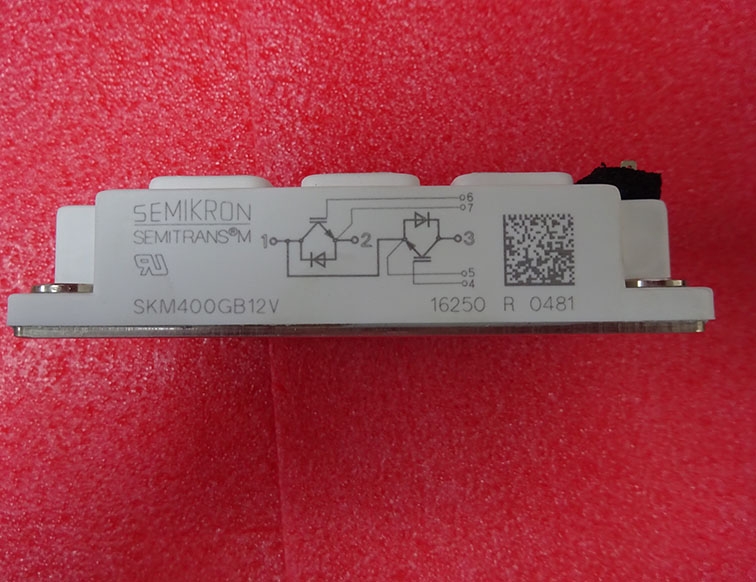

Part Number	SKM400GB12V	-
Collector-Emitter Voltage (Vce)	1200	V
Collector Current (Ic)	400	A
Turn-off Time (t(off))	0.5	渭s
Turn-on Time (t(on))	0.7	渭s
Gate-Emitter Voltage (Vge)	卤20	V
Operating Temperature	-40 to +150	掳C
Case Type	Pressfit	-

Instructions for Use:

1. Installation: Ensure the mounting surface is clean and flat before installing the SKM400GB12V. Apply thermal paste evenly on the heat sink where the module will be mounted.
2. Electrical Connections: Verify all electrical connections are correct and secure. The module should be connected according to the circuit diagram provided in your design specifications.
3. Heat Management: Adequate heat dissipation is critical. Ensure the heat sink is properly attached and that there is sufficient airflow around the module.
4. Operating Conditions: Do not exceed the maximum ratings listed in the parameter table. Pay special attention to the operating temperature range and current limits.
5. Gate Drive Requirements: Ensure the gate drive voltage remains within the specified limits of 卤20V. Incorrect gate drive can lead to improper switching or damage to the module.
6. Storage: Store in a dry, cool place away from direct sunlight and sources of heat when not in use.

(For reference only)
