Details

---

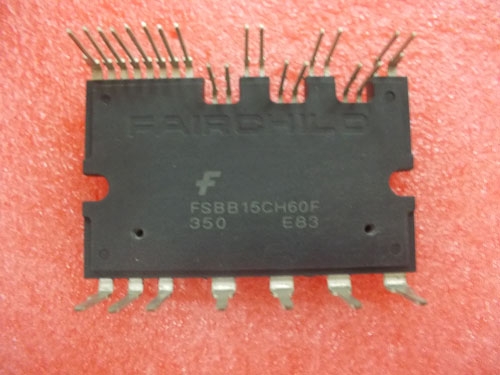

BUY FSBB15CH60F https://www.utsource.net/itm/p/12613860.html

Parameter	Symbol	Min	Typ	Max	Unit	Conditions
Blocking Voltage	V(BR)	-	600	-	V
On-State Current	IT(AV)	-	15	-	A	Tj = 25掳C
On-State Voltage Drop	VF	1.7	-	2.3	V	IT(RMS)
Gate Threshold Voltage	VGS(th)	2	-	4	V	Id = 250 渭A
Input Capacitance	Ciss	-	900	-	pF	VDS = 400 V
Total Device Dissipation	Ptot	-	-	120	W	TC = 25掳C
Junction Temperature	Tj	-	-	150	掳C

Instructions for FSBB15CH60F

1. Installation:

   • Ensure the device is handled with care to avoid damage from static electricity (ESD).
   • Follow proper mounting techniques to ensure good thermal contact and heat dissipation.

2. Operation:

   • Operate within the specified voltage and current limits to prevent overheating or failure.
   • Keep the junction temperature below the maximum limit to ensure reliable operation.

3. Storage:

   • Store in a dry, cool place away from direct sunlight and corrosive environments.
   • Use anti-static packaging to protect against ESD.

4. Handling:

   • Use appropriate tools and methods when soldering to avoid thermal stress on the device.
   • Avoid applying excessive force during installation as it can cause physical damage.

5. Testing:

   • Test the device parameters under controlled conditions to ensure they meet the specifications provided.
   • Regularly inspect the device for signs of wear or damage that could affect performance.

6. Safety:

   • Always adhere to safety guidelines when working with high voltages.
   • Disconnect power sources before handling the device to prevent electrical hazards.

(For reference only)
