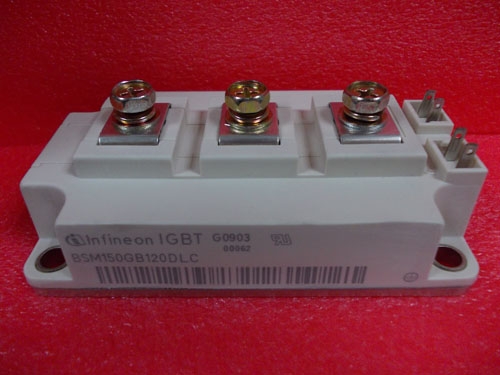

BUY BSM150GB120DLC https://www.utsource.net/itm/p/12613869.html

Parameter	Symbol	Min	Typ	Max	Unit
Continuous Drain Current	ID	-	150	-	A
Pulsed Drain Current (t=10渭s)	Ipp	-	300	-	A
Drain-Source Voltage	VDS	-	1200	-	V
Gate-Source Voltage	VGS	-15	-	15	V
Total Power Dissipation	PD	-	2400	-	W
Junction Temperature	Tj	-55	-	175	掳C
Storage Temperature	Tstg	-55	-	150	掳C
Thermal Resistance, Junction to Case	Rth(j-c)	-	0.16	-	K/W
On-State Resistance (VGS=15V, ID=150A)	RDS(on)	-	0.018	-	惟
Turn-On Delay Time	td(on)	-	100	-	ns
Rise Time	tr	-	90	-	ns
Turn-Off Delay Time	td(off)	-	70	-	ns
Fall Time	tf	-	80	-	ns

Instructions for Use:

1. Handling and Storage:

   • Store the device in a dry, cool place within the specified storage temperature range.
   • Handle with care to avoid mechanical damage or electrostatic discharge (ESD).

2. Mounting:

   • Ensure proper heat sinking to maintain the junction temperature within the specified limits.
   • Use thermal paste or thermal interface material between the device and the heat sink for better thermal conductivity.

3. Electrical Connections:

   • Connect the drain (D), source (S), and gate (G) terminals correctly to avoid short circuits.
   • Use appropriate wire gauges to handle the current ratings without excessive voltage drops.

4. Operation:

   • Do not exceed the maximum ratings for continuous drain current, pulsed drain current, drain-source voltage, and power dissipation.
   • Ensure the gate-source voltage is within the specified range to prevent damage to the gate oxide.
   • Monitor the junction temperature to ensure it does not exceed the maximum allowable value.

5. Testing:

   • Use a suitable power supply and test equipment to verify the device parameters.
   • Perform tests under controlled conditions to avoid overstressing the device.

6. Safety:

   • Always follow safety guidelines when working with high voltages and currents.
   • Use protective equipment such as gloves and safety glasses when handling the device.

For more detailed information, refer to the datasheet provided by the manufacturer.

(For reference only)
