Details

---

BUY XC9536-15PCG44C https://www.utsource.net/itm/p/12614265.html

Parameter	Description

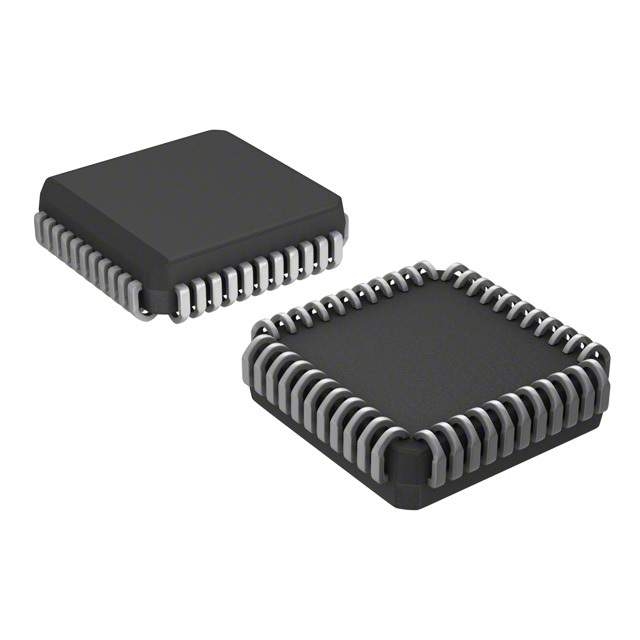

Device Type	XC9536-15PCG44C
Family	CoolRunner?-II
Density	36 macrocells
Package	44-Pin Plastic Quad Flat Pack (PQFP)
Speed Grade	-15 (Maximum operating frequency of 150 MHz)
I/O Pins	32
Supply Voltage (VCC)	3.3V
Configuration	In-System Programmable (ISP) via JTAG or dedicated configuration pins
Nonvolatile Memory	EEPROM
Operating Temperature	Commercial: 0掳C to +70掳C, Industrial: -40掳C to +85掳C
Power Consumption	Low power consumption suitable for portable applications

Instructions for Use:

1. Power Supply Connection: Connect the VCC pin to a 3.3V supply and ensure all ground (GND) pins are connected to a common ground.
2. Configuration Mode: To configure the device, apply the appropriate signals to the configuration mode pins (M0, M1, M2). For ISP, use the JTAG interface.
3. Programming: Use compatible programming software such as Xilinx iMPACT to program the device via JTAG or dedicated configuration pins.
4. Signal Integrity: Ensure that all I/O signals have proper termination resistors if required by your application to avoid signal integrity issues.
5. Thermal Considerations: Although the device is designed for low power consumption, ensure adequate ventilation or cooling if used in high-density or enclosed environments.
6. Handling Precautions: Handle the device with care to prevent electrostatic discharge (ESD) damage. Use ESD-safe tools and practices when soldering or handling the component.

For detailed specifications and more advanced instructions, refer to the official Xilinx datasheet and application notes for the XC9536-15PCG44C.

(For reference only)
