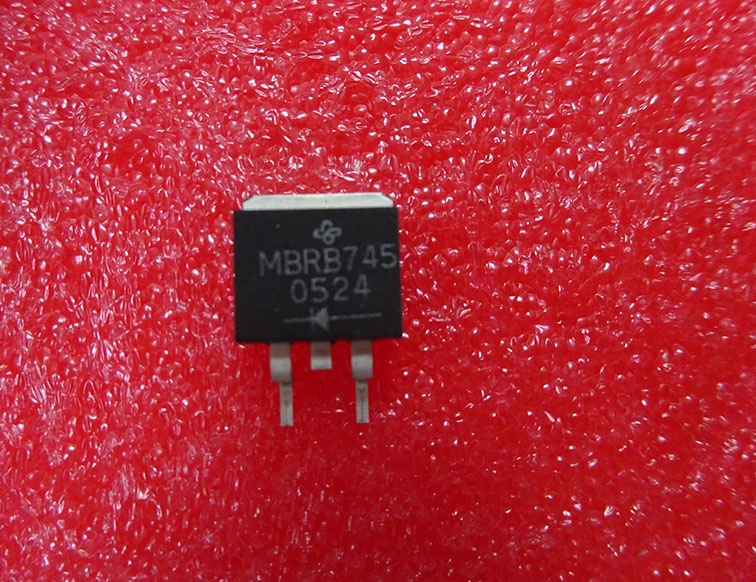

BUY MBRB745 https://www.utsource.net/itm/p/12617422.html

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
Repetitive Peak Reverse Voltage	VRRM	-	-	450	-	V
Maximum RMS Voltage	VRMS	-	-	319	-	V
Maximum DC Blocking Voltage	VDC	-	-	450	-	V
Average Rectified Output Current (TJ = 25掳C)	IF(AV)	f = 50/60 Hz	7	-	-	A
Average Rectified Output Current (TJ = 100掳C)	IF(AV)	f = 50/60 Hz	4.5	-	-	A
Non-repetitive Peak Surge Forward Current	IFSM	Tj = 25掳C, t = 8.3 ms (sine-wave half cycle)	-	200	-	A
Forward Voltage Drop (IF = 7A, TJ = 25掳C)	VF	-	-	1.1	-	V
Reverse Current at 25掳C (VRRM = 450V)	IR	-	-	5	-	渭A
Junction to Ambient Thermal Resistance	R胃JA	-	-	15	-	掳C/W
Operating Junction Temperature Range	TJ	-	-55	-	150	掳C

Instructions for Use:

1. Mounting:

   • Ensure that the device is mounted on a heat sink if continuous operation at high currents is required.
   • Use appropriate mounting hardware to ensure good thermal contact.

2. Electrical Connections:

   • Connect the anode and cathode terminals correctly to avoid reverse polarity, which can cause damage.
   • Use wires or leads with sufficient current-carrying capacity to handle the rated current.

3. Thermal Management:

   • Monitor the junction temperature to ensure it remains within the specified range.
   • If operating at high ambient temperatures, consider additional cooling methods such as forced air or liquid cooling.

4. Surge Current Handling:

   • The device can handle non-repetitive surge currents up to 200A for short durations. Ensure that these surges do not exceed the specified limits to avoid damage.

5. Reverse Voltage:

   • Do not exceed the maximum repetitive peak reverse voltage (V_RRM) to prevent breakdown.

6. Forward Voltage:

   • The forward voltage drop (V_F) should be considered when designing the power supply to ensure efficient operation.

7. Storage and Handling:

   • Store the device in a dry, cool place away from direct sunlight and corrosive environments.
   • Handle with care to avoid mechanical stress or damage to the leads.

8. Testing:

   • Before installation, test the device for proper functionality using a multimeter or other suitable testing equipment.

9. Compliance:

   • Ensure that the device meets all relevant safety and compliance standards for the application.

10. Documentation:

    • Refer to the datasheet and application notes for more detailed information and specific application guidance.

(For reference only)
